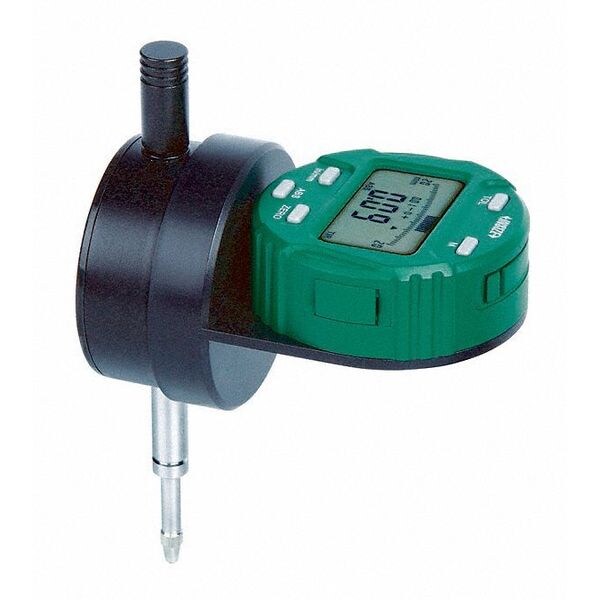

Digital Indicator, 0.00079" Accuracy

  • Mfr # 2118-10E
  • Zoro # G2551427
product price:
$
271.99
/ea
Free Shipping & Returns

Key Features

Series
Series 2118
Range
0 in to 0.5 in
Resolution
0.01 mm, 0.0005 in
Accuracy
+/- 0.0015 in
Bezel
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2118-10E
Zoro #
G2551427
UPC #
-
Country of Origin
China
Item
Back Plunger Digital Indicator
Series
Series 2118
Range
0 in to 0.5 in
Resolution
0.01 mm, 0.0005 in
Accuracy
+/- 0.0015 in
Bezel
Yes
Long Form Calibration Certificate
No
Features
Back Plunger Type Electronic Indicator, Meet Asme B89.1.10m-2001 Standard, Rotate Display 32 Degrees
Includes
Spindle Lift Knob
Standards
ASME B89.1.10-2001
Includes Case
Yes
Maximum Measurement - Inch
0.5 in
Maximum Measurement - mm
12.7 mm
SPC Output
Yes
Minimum Measurement - mm
0 mm
Back Type
Flat
Included Certification
Certificate of Accuracy
Minimum Measurement - Inch
0 in
Case Type
Case
Includes Battery
Yes
Operation Type
Back Plunger
Number of Indicators
1
Contact Point Shape
Ball
Bezel Type
No
Variable Resolution
No
Non-Magnetic
Yes
Shock Resistant
No
Data Output Type
Cabled
Compatible Data Output Cable
7306-40; 7302-SPC3A; 7305-SPC1A; 7305-C01
Display Type
LCD With Analog Bar
Millimeters Measured - Minimum
0 mm
Bezel Lock
No
Millimeters Measured - Maximum
12.7 mm
IP Rating
Not Rated
Body Color
Green
Inches Measured - Maximum
0.5 in
Inches Measured - Minimum
0 in

Dimensions

Dial Size
2.09 in
Dimension Type
Inch/Metric
Stem Dia.
0.375 in
Stem Thread Size
#4-48 UNF
Contact Point Dia.
0.13 in
Battery Size
CR2032
Stem Diameter
0.375 in
Contact Point Diameter
0.13 in

Description

Back Plunger Digital Indicator, Series Series 2118, Resolution 0.01 mm, 0.0005 in, Accuracy +/- 0.0015 in, Range 0 in to 0.5 in, Bezel Yes, Long Form Calibration Certificate No, Features Back Plunger Type Electronic Indicator, Meet Asme B89.1.10m-2001 Standard, Rotate Display 32 Degrees , Includes Spindle Lift Knob
