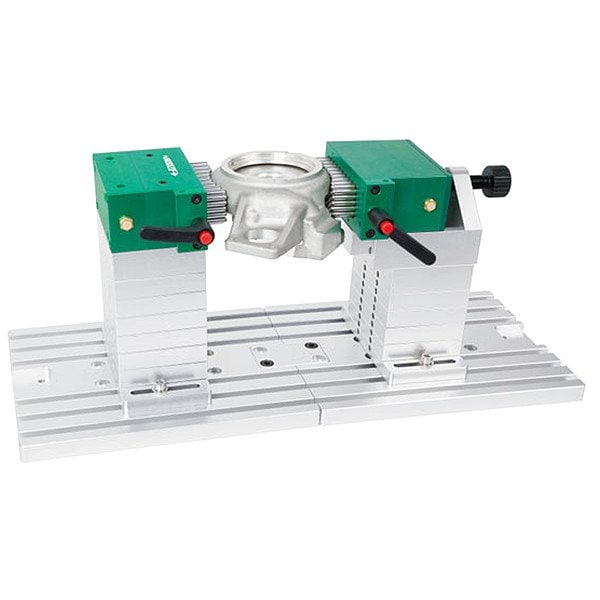

Jig Set for CMM, 20 mm H, 600 mm L, 240mm W
Mfr # ISY-500
Zoro # G805778323
product price:Â $8,194.99
/ea
Free Shipping & Returns
Key Features
Includes
(1) ISY-500-1 Spring Anvil, (1) ISY-500-2 Adjustable Spring Anvil, (10) ISY-500-4 Block, (2) ISY-500-3 Base Plate, (2) ISY-500-5 Connecting Plate, (2) ISY-500-6 Connecting Block of Base Plate, (2) ISY-500-7 Clamp Handle
Number of Pieces
19
Base Plate Length
600 mm
Base Plate Height
20 mm
Table or Gantry Length - Minimum
300 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ISY-500
- Zoro #
- G805778323
- UPC #
- 6940561974973
- Country of Origin
- China
Dimensions
- Base Plate Length
- 600 mm
- Base Plate Height
- 20 mm
- Table or Gantry Length - Minimum
- 300 mm
- Base Plate Width
- 240 mm
- Table or Gantry Width - Minimum
- 240 mm
- Anvil Size
- 6 mm Dia.
Details
- Item
- Jig Set for CMM
- Includes
- (1) ISY-500-1 Spring Anvil, (1) ISY-500-2 Adjustable Spring Anvil, (10) ISY-500-4 Block, (2) ISY-500-3 Base Plate, (2) ISY-500-5 Connecting Plate, (2) ISY-500-6 Connecting Block of Base Plate, (2) ISY-500-7 Clamp Handle
- Number of Pieces
- 19
- Base Plate Hole Center to Center Distance
- 20 mm
Description
Jig Set for CMM, Base Plate Height 20 mm, Base Plate Hole Center to Center Distance 20 mm, Base Plate Length 600 mm, Base Plate Width 240 mm, Includes (1) ISY-500-1 Spring Anvil, (1) ISY-500-2 Adjustable Spring Anvil, (10) ISY-500-4 Block, (2) ISY-500-3 Base Plate, (2) ISY-500-5 Connecting Plate, (2) ISY-500-6 Connecting Block of Base Plate, (2) ISY-500-7 Clamp Handle, Number of Pieces 19, Table or Gantry Length - Minimum 300 mm, Table or Gantry Width - Minimum 240 mm
