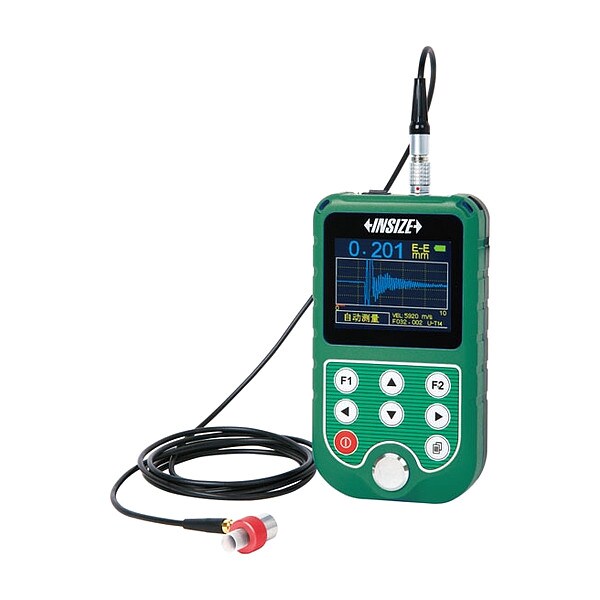

UT Thickness Gage, MaxFreq 15MHz
Mfr # ISU-700D
Zoro # G511935034
product price:Â
$
8,449.99
/ea
Free Shipping & Returns
Key Features
Maximum Velocity
9.999 mps
Battery Size
AAA
Minimum Frequency
15 Hz
Thickness Measurement Resolution
0.001 in
Maximum Frequency
15 MHz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ISU-700D
- Zoro #
- G511935034
- UPC #
- 6940561958225
- Country of Origin
- China
Dimensions
- Battery Size
- AAA
- Thickness Measurement Resolution
- 0.001 in
- Minimum Thickness Measured
- 0.008 in
- Thickness Measurement Accuracy
- +/-0.04mm (H Less Than10mm) +/-(0.04+H/1000)mm (Hz10mm)H is the thickness to be measured in mm +/-.002"(H Less Than.394") +/-(.002"+H/1000)"(Hz.394")H is the thickness to be measured in inch
- Maximum Thickness Measured
- 0.394 in
Details
- Maximum Velocity
- 9.999 mps
- Minimum Frequency
- 15 Hz
- Maximum Frequency
- 15 MHz
- Number of Records Stored
- 10,000
- Calibration Certificate Type
- Not Certified
- Minimum Velocity
- 1 mps
- Includes
- Couplant, Transducer
- Item
- Ultrasonic Thickness Gauge
- Power Source
- Battery
- Number of Digits
- 4
- Power Source - TS Only
- Battery
- Power Source - old
- Battery
Description
Ultrasonic Thickness Gauge, Includes Couplant, Transducer, Thickness Measurement Accuracy +/-0.04mm (H less than 10mm)+/-(0.04+H/1000)mm (Hz10mm)H is the thickness to be measured in mm +/-.002 In.(H less than .394 In.)+/-(.002 In.+H/1000) In.(Hz.394 In.)H is the thickness to be measured in inch, Thickness Measurement Resolution 0.001 in, Calibration Certificate Type Not Certified, Maximum Frequency 15 MHz, Maximum Thickness Measured 0.394 in, Minimum Thickness Measured 0.008 in
