Shop INSIZE

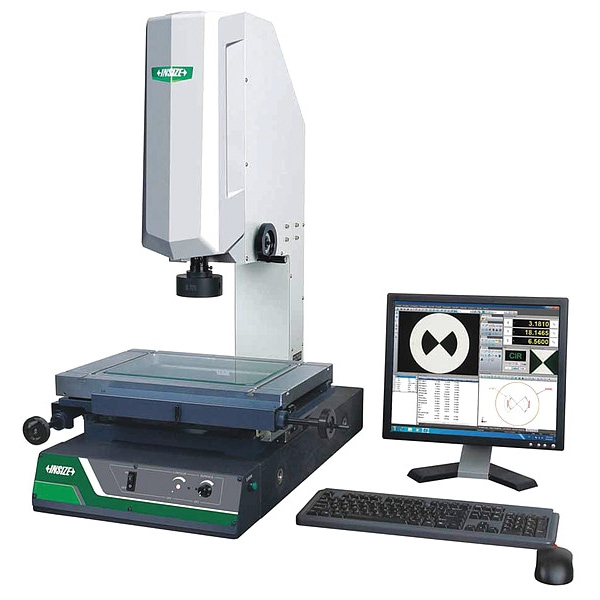

Vision Measuring System

  • Mfr # ISD-V250A

  • Zoro # G5135183

product price:
$
21,068.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Measuring Range
10 in x 6 in x 8 in
Resolution
0.5 micron
Magnification
33x~195x
Size
450mm x 280mm
Protractor Screen
19 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ISD-V250A
Zoro #
G5135183
UPC #
-
Country of Origin
China

Dimensions

Size
450mm x 280mm
Maximum Workpiece Height
6.3 in
Length Standard
Linear Scale
Overall Dimensions
29 59/64 in x 23 5/8 in x 35 7/16 in
Stage Glass Size
12.05 x 7.72 in
Stage Size
18 in x 11 in

Details

Item
Vision Measuring System with Computer
Measuring Range
10 in x 6 in x 8 in
Resolution
0.5 micron
Magnification
33x~195x
Protractor Screen
19 in
Reading
Digital
Power Supply
110/220V, 50/60 Hz
Includes
Computer
Illumination
Surface with Contour with Adjustable LED
Accuracy
(2.5+L/100)micron m
Capacity (Lb.) Max.
44 lb
Z-Axis Measuring Range
8 in
Vision Measuring System Type
Manual
X-Axis Measuring Range
10 in
Measuring Accuracy
(98.4+10L)uin
Optical System Working Distance
3.625 in
Repeatability
+/-0.00008 in
Optical System Magnification
33 to 195X
Data Output Type
Cable
Display Accuracy
(98.4+10L)uin
Image Detecting Unit
1/3 in Color CCD, 0.3M Pixel
Focusing Travel
8 in
Digital Zoom
0.7x to 4.5x
Magnification System
33X-195X
Projector Series
Insize ISD-V
Observation Unit Zoom
4.5X
Y-Axis Measuring Range
6 in
Power Required
Yes
Image Type
Erect
Z-Axis Measurement
8 in
Y-Axis Measurement
6 in
X-Axis Measurement
10 in

Description

Item Vision Measuring System with Computer, Digital Zoom 0.7x to 4.5x, Length Standard Linear Scale, Measuring Accuracy (98.4+10L)uin, Measuring Range 10 in x 6 in x 8 in, Observation Unit Zoom 4.5X, Projector Series Insize ISD-V, Stage Glass Size 12.05 x 7.72 in, Vision Measuring System Type Manual, X-Axis Measuring Range 10 in, Y-Axis Measuring Range 6 in, Z-Axis Measuring Range 8 in, Data Output Type Cable, Display Accuracy (98.4+10L)uin, Focusing Travel 8 in
