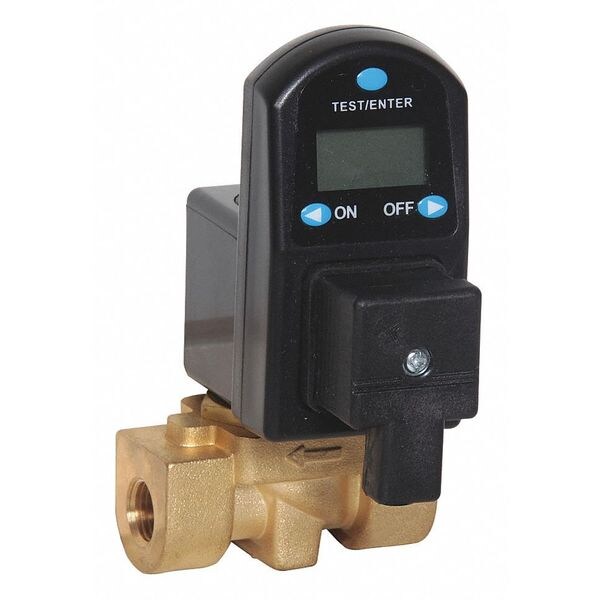

Digital Drain Valve, 115V, 1/4 In., 38 gpm (Discontinued)
- Mfr # DTDV10-25-230
- Zoro # G0396877
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DTDV10-25-230
Zoro #
G0396877
UPC #
-
Country of Origin
Unknown
Dimensions
Pipe Size
1/4 in NPT
Drain Size
1/4 in
Overall Width
2 in
Overall Depth
3 29/32 in
Overall Height
4 45/64 in
Details
Item
Digital Timer Drain Valve
Drain Rate
12.0 gpm
Adjustable Drain Cycle
0.5 min to 99 hr
Purge Time
0.5 sec to 99 sec
Voltage
115V
Max. Pressure
230 psi
Operating Temp. Range
40 Degrees to 176 Degrees F
Includes
6 ft Power Cord
Hz
50/60
Body Material
Plastic and Brass
Enclosure
NEMA 4
Amps AC
0.20
Description
Digital Timer Drain Valve, Pipe Size 1/4 in NPT, Drain Size 1/4 in, Drain Rate 12.0 gpm, Adjustable Drain Cycle 0.5 min to 99 hr, Purge Time 0.5 sec to 99 sec, Voltage 115V, Max. Pressure 230 psi, Operating Temp. Range 40 Degrees to 176 Degrees F, Hz 50/60, Amps AC 0.20, Enclosure NEMA 4, Body Material Plastic and Brass, Overall Height 4 45/64 in, Overall Width 2 in, Overall Depth 3 29/32 in, Includes 6 ft Power Cord
