Shop INTERMATIC

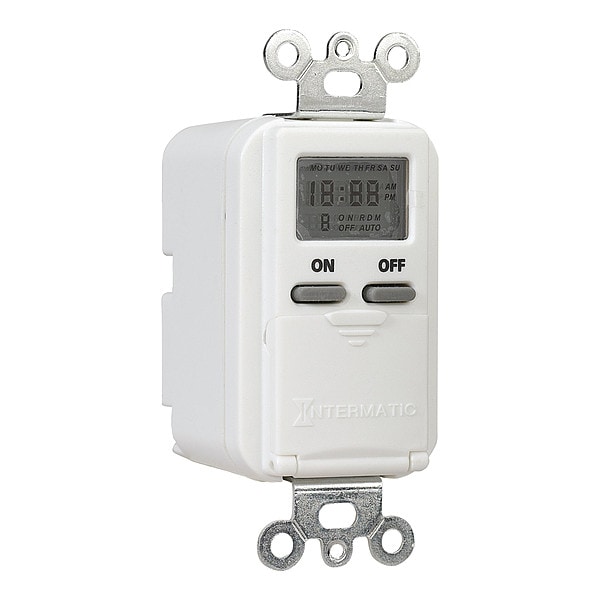

Digital Timer, 7-Day, SPST, 120 V, White

  • Mfr # EI500WC

  • Zoro # G2243263

product price:  $51.44
/ea

Key Features

Voltage
120V AC
Max. Time Setting
7 days
Min. Time Setting
1 min
Max. On/Off Cycles
14
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EI500WC
Zoro #
G2243263
UPC #
078275105232
Country of Origin
China

Dimensions

Length
6 5/16 in
Depth
2 1/8 in
Width
3 in
Length (Straight Wireway)
6 5/16 in
Product Depth (in)
1.4375
Product Height (in)
4.125
Product Width (in)
1.75
Overall Depth
1 7/16 in
Overall Width
1 3/4 in
Overall Height
4 1/8 in

Details

Item
Wall Switch Timer
Voltage
120V AC
Max. Time Setting
7 days
Min. Time Setting
1 min
Max. On/Off Cycles
14
Color
White
Watts
1800
Standards
cULus
Amps
15
Number of Poles
1
HP @ 120V
1/4 hp
Type of Switch
Electronic
Style
Weekly
Features
Rechargeable Battery Backup, Requires Neutral Connection
Switch Type
1-Pole
Battery Type
Nickel-Metal Hydride
Number of Gangs
1
Product Type
Wall Switch Timers
Neutral Connection Required
Yes
Inductive
1000 VA, 125 VAC, 60 Hz
Input Voltage Range(s)
125 VAC, 60 Hz
Tungsten (Incandescent) Range(s)
1000 W
UL Certification
CULUS
Backup Type
Battery
Resistive Heater
15 A, 1875 W
Tungsten Incandescent
1000 W
Operating Temperature Max (°F)
104
Operation Mode
24 hour
Operating Temperature Min (°F)
32
Wiring Configurations
Single
Battery Service Type
Non-Serviceable
Minimum ON/OFF Times
1 min
Applications
Air Movement & Ventilation Indoor Lighting Control Outdoor Lighting Control
Electronic Ballast LED
4 A, 500 VA
Inductive Load Ratings Ranges
1000 VA, 125 VAC, 60 Hz
General Purpose
15 A, 125 VAC, 60 Hz
Chemical Composition of the Battery Cell
Alloy Powder, Oxyhydroxide
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Number of Batteries Included
1
Wall Plate Configurations
Single-Gang
Motor Load Ratings Ranges
1/4 HP, 125 VAC, 60 Hz
Mechanism Type
Digital/Electrical
Watt Hours Per Battery
0.096
Maximum ON/OFF Operations
14
Contact Form
SPST-NO
Operating Temperature Min (°F)
32
Operating Temperature Max (°F)
104
Includes Hold
No Hold Included
Body Color
White
Compatible Lighting
Fluorescent, Incandescent, LED
AC Voltage Rating
125V AC
Display Type
Digital
Wattage - Maximum
1,875 W
Application
HVAC, Lighting
Current Rating - Maximum
15 A
Horsepower @ 120V - Maximum
1/4 hp
Includes Wall Plate
No Wall Plate Included
Indoor/Outdoor Usage
Indoor, Outdoor
On/Off Cycles - Maximum
14
Time Setting - Maximum
7 day
Switch Style
1-Pole
Time Setting - Minimum
1 min

Description

Wall Switch Timer, Min. Time Setting 1 min, Max. Time Setting 7 day, Max. On/Off Cycles 14, Voltage 120V AC, Watts 1800, Amps 15, 1-Pole, HP @ 120V 1/4 hp, Type of Switch Electronic, Color White, Length 6 5/16 in, Width 3 in, Style Weekly, Depth 2 1/8 in, Number of Gangs 1, Battery Type Nickel-Metal Hydride, Features Rechargeable Battery Backup, Requires Neutral Connection, Standards cULus
