  11. Electromechanical Timer, 24 Hour, 1 Poles

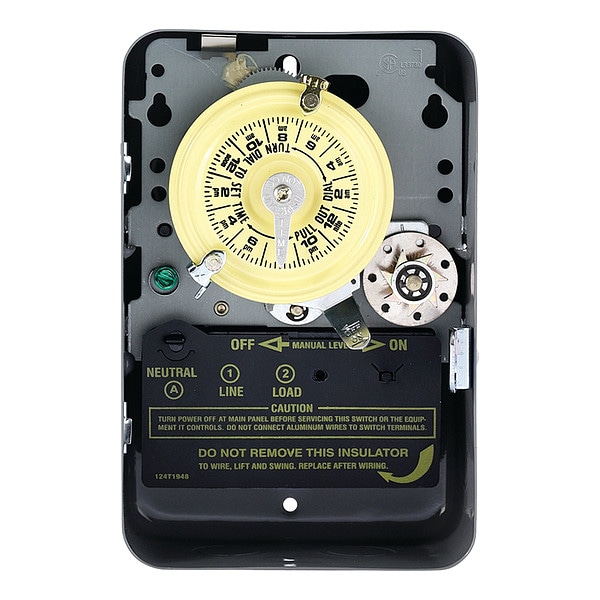

Intermatic Electromechanical Timer, 24 Hour, 1 Poles T171 - main

Electromechanical Timer, 24 Hour, 1 Poles

  • Mfr # T171

  • Zoro # G0525935

product price: $117.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
40 A
Enclosure Type
Steel
Min. Time Setting
1 hr
Max. Time Setting
23 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T171
Zoro #
G0525935
UPC #
078275171015
Country of Origin
Mexico

Dimensions

Depth
3 in
Width
5 in
Height
7 13/16 in
Wire Size Max
#8 AWG
Product Height
7.875 in; 200 mm
Product Width
5.125 in; 130.2 mm
Product Depth
3.4375 in; 87.3 mm
Wire Size Min
#14 AWG
Product Width (in)
5.125
Product Depth (in)
3.4375
Product Height (in)
7.875
Overall Width
5 1/8 in
Overall Depth
3 7/16 in
Overall Height
7 7/8 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
40 A
Enclosure Type
Steel
Min. Time Setting
1 hr
Max. Time Setting
23 hr
Contact Form
SPST
Max. On/Off Cycles
12
Type
24-Hour
Number of Trippers Included
2
NEMA Rating
1
Day Skipper
Yes
Nominal Max. Time Setting
24 hr
Finish
Metal Enclosure has Gray Enamel
Description/Special Features
Furnished with a Maximum of 12 Trippers, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day
Contact HP @ 120V
2 hp
Extra Trippers
11Z965
Number of Poles
1
Mount
wall
Time Setting Range
1 hr. to 23 hr.
Standards
cCSAus, cULus
Product Type
Timer
Operation Mode
25 hour
Number Of Circuits
1
Packaging Applications
Indoor/Outdoor Lighting; Pool Heaters; Pumps; Blowers; Conveyors; Electric Fences; Fans; Filters; Signs; Various Other Electrical Loads; Commercial; Industrial; Residential
Market
Commercial; Industrial
Switch Type
SPST
Electronic Ballast Load Ratings
16 A, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges
1000 VA, 120-240 VAC, 60 Hz
Inductive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Maximum On Off Operations
10
Operating Temperature Max
130°C
Skipper Wheel Operation Mode
Not Included
Solutions
Machinery & Pumps; Panel Integrators
Inductive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Tungsten Load Ratings
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
CSA Certification
cCSAus
Tungsten Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Minimum On Off Time
1 hour
UL Certification
cULus
Resistive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Electronic Ballast Load Ratings Ranges
16 A, 277 VAC, 60 Hz
Pilot Duty Load Ratings
1000 VA, 120-240 VAC, 60 Hz
Timing Interval
1 hr
Operating Temperature Min
-40°C
UL Cerfication File Number
UL916
Application Compatibilities
LED; HID
Wiring Option
Terminals
Motor Load Ratings
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Input Voltage Ranges
120 VAC, 60 Hz
Power Consumption Max W
3 W
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control
Has Manual Override CVL
Yes
Electronic Ballast
16 A, 277 VAC, 60 Hz
Inductive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s)
40 A, 120-240 VAC, 60 Hz
Has Manual Override
Yes
Input Voltage Range(s)
120 VAC, 60 Hz
Resistive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Maximum Power Consumption (W)
3 W
Operating Temperature Min (°F)
-40
Pilot Duty (NO)
1000 VA, 120-240 VAC, 60 Hz
Skipper Wheel
Not Included
Motor Load Ratings Ranges
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Operating Temperature Max (°F)
130
Features
Manual Override, Three Day-Skipper Screws Included
Tungsten (NO)
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Maximum ON/OFF Operations
10
Minimum ON/OFF Times
1 hour
Operating Temperature Max (°F)
130
Operating Temperature Min (°F)
-40
Series
T100
Indoor/Outdoor Usage
Indoor
AC Voltage Rating
120V AC
Horsepower @ 120V - Maximum
2 hp
Time Setting - Minimum
1 hr
Number of Trippers - Maximum
2
Operating Temperature - Minimum
-40 Degrees F
Time Setting - Maximum
24 hr
Current Rating - Maximum
40 A
Compatible Lighting
HID, LED
Body Material
Steel
Horsepower @ 240V - Maximum
5 hp
Mounting Style
Surface
Application
Lighting
Operating Temperature - Maximum
130 Degrees F
NEMA Enclosure Rating
1
On/Off Cycles - Maximum
10
Body Color
Grey
Time Maximum Setting
24 hr.
Time Minimum Setting
1 hr.

Description

Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPST, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V -, Day Skipper Yes, Enclosure Type Steel, Finish Metal Enclosure has Gray Enamel, NEMA Rating 1, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 5 in, Depth 3 in, Height 7 13/16 in, Number of Trippers Included 2, Extra Trippers 11Z965
