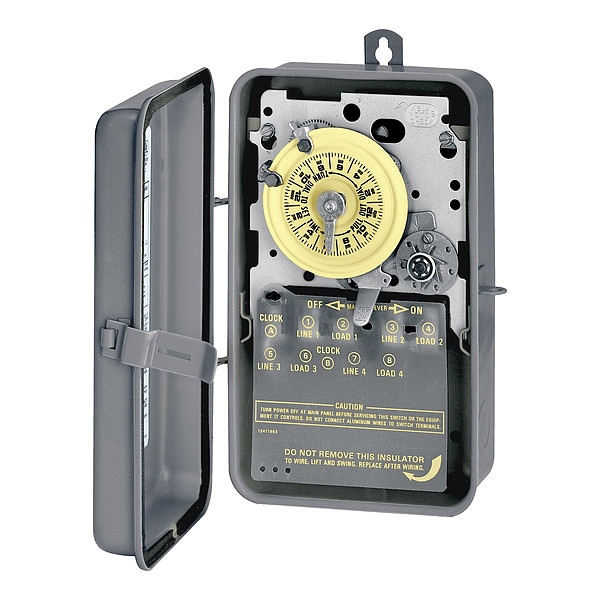

Intermatic Electromechanical Timer, 24 Hour, 4pst T1472BR - main

Electromechanical Timer, 24 Hour, 4pst

  • Mfr # T1472BR

  • Zoro # G1904585

product price: $243.16
/ea
Free Shipping & Returns

Key Features

Voltage
208 to 277V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
23 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T1472BR
Zoro #
G1904585
UPC #
078275179035
Country of Origin
Mexico

Dimensions

Height
9 7/16 in
Width
5 1/2 in
Depth
3 5/8 in
Product Width
6.5 in; 165.1 mm
Product Depth
3.625 in; 92.1 mm
Product Height
10.125 in; 257.2 mm
Wire Size Max
#8 AWG
Wire Size Min
#14 AWG
Product Width (in)
6.5
Product Depth (in)
3.625
Product Height (in)
10.125
Overall Height
10 1/8 in
Overall Width
6 1/2 in
Overall Depth
3 5/8 in

Details

Item
Electromechanical Timer
Voltage
208 to 277V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
23 hr
Contact Form
SPST
Max. On/Off Cycles
12
Number of Poles
4
Mount
Wall
Day Skipper
Yes
Contact HP @ 120V
2 hp
Extra Trippers
11Z965
Type
24-Hour
NEMA Rating
3R
Time Setting Range
1 hr. to 23 hr.
Nominal Max. Time Setting
24 hr
Description/Special Features
3R Enclosures in Steel or Noncorrosive Plastic, Furnished with a Maximum of 12 Trippers, Has Adjustable Time Setting, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day
Number of Trippers Included
2
Finish
Metal Enclosure has Gray Enamel
Contact HP @ 240V
5 hp
Standards
cCSAus, cULus
Product Type
Timer
Resistive Load Ratings Ranges
40 A, 120-480 VAC, 60 Hz
Motor Single Phase Load Ratings
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Solutions
Machinery & Pumps; Panel Integrators
Maximum On Off Operations
10
Pilot Duty Load Ratings Ranges
1000 VA, 120-277 VAC, 60 Hz
Operating Temperature Max
130°C
Application Compatibilities
LED; HID
Motor Three Phase Load Ratings
7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz
UL Cerfication File Number
UL916
Switch Type
4-PST
Input Voltage Ranges
208-277 VAC, 60 Hz
Has Manual Override CVL
Yes
Operation Mode
25 hour
Inductive Load Ratings
40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor Three Phase Ranges
7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz
Motor Single Phase Ranges
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Power Consumption Max W
3 W
CSA Certification
cCSAus
Wiring Option
Terminals
Resistive Load Ratings
40 A, 480 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Market
Commercial; Industrial
Minimum On Off Time
1 hour
Tungsten Load Ratings
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz
Electronic Ballast Load Ratings
16 A, 277 VAC, 60 Hz
Skipper Wheel Operation Mode
Not Included
UL Certification
cULus
Pilot Duty Load Ratings
1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
Number Of Circuits
1
Electronic Ballast Load Ratings Ranges
16 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Tungsten Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Operating Temperature Min
-40°C
Packaging Applications
Indoor/Outdoor Lighting; Pool Heaters; Pumps; Blowers; Conveyors; Electric Fences; Fans; Filters; Signs; Various Other Electrical Loads; Commercial; Industrial; Residential
Resistive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz
Maximum Power Consumption (W)
3 W
Maximum ON/OFF Operations
10
Tungsten Range(s)
40 A, 120-277 VAC, 60 Hz
Skipper Wheel
Not Included
Features
Manual Override, Three Day-Skipper Screws Included
Has Manual Override
Yes
Tungsten (NO)
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Electronic Ballast
16 A, 277 VAC, 60 Hz
Operating Temperature Max (°F)
130
Input Voltage Range(s)
208-277 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Minimum ON/OFF Times
1 hour
Pilot Duty (NO)
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Inductive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Body Color
Grey
AC Voltage Rating
208-277V AC
Operating Temperature - Minimum
-40 Degrees F
Body Material
Steel
Time Setting - Minimum
1 hr
Mounting Style
Surface
On/Off Cycles - Maximum
10
Indoor/Outdoor Usage
Outdoor
Horsepower @ 240V - Maximum
5 hp
Current Rating - Maximum
40 A
Compatible Lighting
HID, LED
Application
Lighting
Horsepower @ 120V - Maximum
2 hp
NEMA Enclosure Rating
3R
Number of Trippers - Maximum
2
Time Setting - Maximum
24 hr
Series
T100
Operating Temperature - Maximum
130 Degrees F
Time Minimum Setting
1 hr.
Time Maximum Setting
24 hr.

Description

Electromechanical Timer, 24-Hour, Number of Poles 4, Contact Form SPST, Voltage 208 to 277V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V 5 hp, Day Skipper Yes, Enclosure Type Steel, Finish Metal Enclosure has Gray Enamel, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 5 1/2 in, Depth 3 5/8 in, Height 9 7/16 in, Number of Trippers Included 2, Extra Trippers 11Z965
