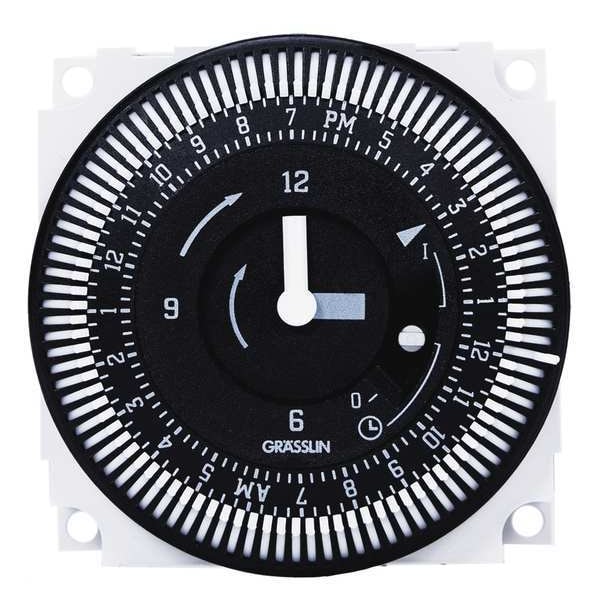

Intermatic Electromechanical Timer, 24-Hour, SPDT FM1STUZH-240U - main

Electromechanical Timer, 24-Hour, SPDT

  • Mfr # FM1STUZH-240U

  • Zoro # G7251081

product price: $55.99
/ea

Key Features

Voltage
240V AC
Amps
21 A
Enclosure Type
STEEL
Min. Time Setting
15 min
Max. Time Setting
23 hr 45 min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FM1STUZH-240U
Zoro #
G7251081
UPC #
614573121057
Country of Origin
Germany

Dimensions

Depth
2 5/16 in
Height
3 1/2 in
Width
3 5/16 in
Product Depth
1 1/4 in; 32 mm
Product Width
2 23/64 in; 60 mm
Product Height
2 23/64 in; 60 mm
Product Height (in)
2.359375
Product Depth (in)
1.25
Product Width (in)
2.359375
Overall Width
2 3/8 in
Overall Depth
1 1/4 in
Overall Height
2 3/8 in

Details

Item
Electromechanical Timer
Voltage
240V AC
Amps
21 A
Enclosure Type
STEEL
Min. Time Setting
15 min
Max. Time Setting
23 hr 45 min
Contact Form
SPDT
Max. On/Off Cycles
48
Contact HP @ 120V
1 hp
Type
24-Hour
Contact HP @ 240V
2 hp
Time Setting Range
15 min. to 23-3/4 hr.
Number of Trippers Included
96
Day Skipper
No
Nominal Max. Time Setting
24 hr
Operating Temp.
-40 Degrees to 185 Degrees F
Number of Poles
1
Description/Special Features
True Clock Face
NEMA Rating
3R
Standards
cCSAus, CE, cRUus
Mount
Panel
Product Type
Timer
Has Captive Trippers CVL
Yes
Wiring Option
1/4" Quick connect terminals
Tungsten Load Ratings
1350 W, 120 VAC
Mounting Options
Panel
UL Cerfication File Number
E10694
Input Voltage Ranges
208/240 VAC, 60 Hz
Shortest Switching Time
ON/OFF 15 minutes
CSA Certification
cCSAus
Power Consumption Max
1 VA
Resistive Load Ratings
21 A, 250 VAC
Applications
Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
Solutions
Refrigeration; Ventilation; Water Treatment; Generator Exercising
Application Compatibilities
Incandescent; Fluorescent; CFL; LED
Operating Temperature Max
185°C
Has Realtime Clock Face CVL
Yes
Motor Load Ratings
1 HP, 120 VAC; 2 HP, 250 VAC
Operating Humidity
0 to 95%, Non-condensing
Switch Type
SPDT
Has Override Switch CVL
Yes
Maximum Cycle Time
24 hrs
Packaging Applications
Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems
Minimum Cycle Time
15 min
Market
Commercial; Industrial
Clock Drive Type
Synchronous
Operating Temperature Min
-40°C
Timing Interval
15 min
Has Real-time Clock Face
Yes
Has Captive Trippers
Yes
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 250 VAC
Has Override Switch
Yes
Operating Temperature Max (°F)
185
Resistive
21 A, 250 VAC
Tungsten (NO)
1350 W, 120 VAC
Operating Temperature Min (°F)
-40
Mechanism Type
Electromechanical
Features
Manual Override, Noise Immune
Input Voltage Range(s)
208/240 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
185
Time Setting - Minimum
15 min
Operating Temperature - Maximum
185 Degrees F
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED
Series
FM1
Body Material
Steel
On/Off Cycles - Maximum
48
DC Voltage Rating
24V DC
Current Rating - Maximum
21 A
AC Voltage Rating
208/240V AC
Number of Trippers - Maximum
96
Indoor/Outdoor Usage
Indoor
Application
Machinery, HVAC
Operating Temperature - Minimum
-40 Degrees F
Mounting Style
Panel
NEMA Enclosure Rating
No Enclosure
Horsepower @ 120V - Maximum
1 hp
Time Setting - Maximum
24 hr
Horsepower @ 240V - Maximum
2 hp
Time Maximum Setting
25 hr.
Time Minimum Setting
16 min

Description

Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPDT, Voltage 240V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper No, Enclosure Type Steel, NEMA Rating 3R, Min. Time Setting 15 min, Max. Time Setting 23 hr 45 min, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 1/2 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features True Clock Face, Mount Panel, Standards cCSAus, CE, cRUus
