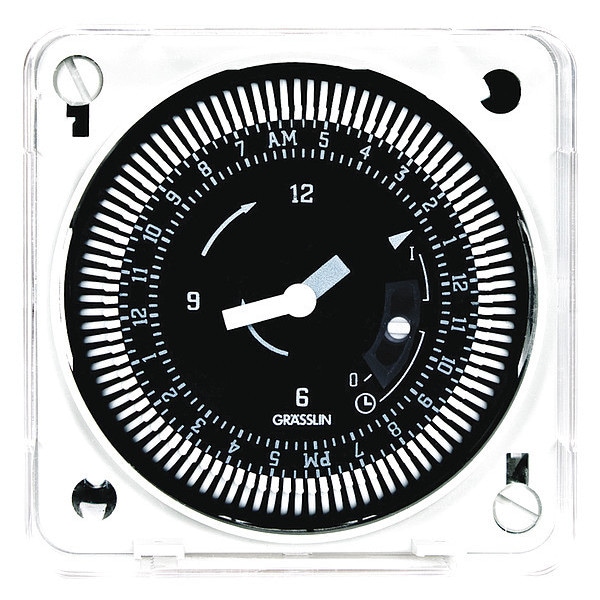

Intermatic Electromechanical Timer, 24-Hour, SPDT MIL72ESTUZH-120 - main

Electromechanical Timer, 24-Hour, SPDT

  • Mfr # MIL72ESTUZH-120

  • Zoro # G6924662

product price: $84.49
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
21 A
Enclosure Type
Plastic
Min. Time Setting
15 min
Max. Time Setting
23 hr 45 min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MIL72ESTUZH-120
Zoro #
G6924662
UPC #
614573132039
Country of Origin
Germany

Dimensions

Depth
2 5/16 in
Width
3 5/16 in
Height
3 51/64 in
Product Height
2 39/64 in; 66 mm
Cut Out Width
66 in; 66 mm
Product Depth
1 23/64 in; 34.5 mm
Cut Out Height
2 5/8 in; 66 mm
Product Width
2 53/64 in; 72 mm
Product Width (in)
2.828125
Product Height (in)
2.609375
Product Depth (in)
1.359375
Overall Depth
1 3/8 in
Overall Width
2 13/16 in
Overall Height
2 5/8 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
21 A
Enclosure Type
Plastic
Min. Time Setting
15 min
Max. Time Setting
23 hr 45 min
Contact Form
SPDT
Max. On/Off Cycles
48
Operating Temp.
-40 Degrees to 185 Degrees F
Mount
Flush
NEMA Rating
3R
Number of Trippers Included
96
Contact HP @ 240V
2 hp
Nominal Max. Time Setting
24 hr
Day Skipper
No
Description/Special Features
Override Switch, Synchronous Motor
Time Setting Range
15 min. to 23-3/4 hr.
Standards
cCSAus, CE, cRUus
Contact HP @ 120V
1 hp
Number of Poles
1
Type
24-Hour
Product Type
Timer
Solutions
Refrigeration; Ventilation; Water Treatment; Generator Exercising
Packaging Applications
Commercial Refrigeration; Pumps/Motor/Fan Control; Hydroponic Systems; Aerobic Wastewater Treatment Systems; Boilers; Generator Exercising
Application Compatibilities
Incandescent; Fluorescent; CFL; LED
Shortest Switching Time
ON/OFF 15 minutes
Wiring Option
1/4" Quick connect terminals
Operating Humidity
0 to 95%, Non-condensing
Applications
Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
Operating Temperature Max
185°C
Mounting Options
Flush
Operating Temperature Min
-40°C
Has Realtime Clock Face CVL
Yes
Input Voltage Ranges
120 VAC, 60 Hz
Switch Type
SPDT
Timing Interval
15 min
Clock Drive Type
Synchronous
Maximum Cycle Time
24 hrs
Power Consumption Max
0.5 VA
Has Override Switch CVL
Yes
Market
Commercial; Industrial
CSA Certification
cCSAus
Resistive Load Ratings
21 A, 250 VAC
Has Captive Trippers CVL
Yes
Motor Load Ratings
1 HP, 120 VAC; 2 HP, 250 VAC
Tungsten Load Ratings
1350 W, 120 VAC
Minimum Cycle Time
15 min
Has Real-time Clock Face
Yes
Resistive
21 A, 250 VAC
Has Captive Trippers
Yes
Tungsten (NO)
1350 W, 120 VAC
Has Override Switch
Yes
Mechanism Type
Electromechanical
Operating Temperature Max (°F)
185
Operating Temperature Min (°F)
-40
Features
Manual Override
Input Voltage Range(s)
120 VAC, 60 Hz
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 250 VAC
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
185
Series
MIL72
Operating Temperature - Maximum
185 Degrees F
Indoor/Outdoor Usage
Outdoor
Time Setting - Maximum
24 hr
On/Off Cycles - Maximum
48
AC Voltage Rating
120V AC
Application
Machinery, HVAC
Horsepower @ 120V - Maximum
1 hp
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Minimum
-40 Degrees F
Time Setting - Minimum
15 min
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED
Mounting Style
Surface
Horsepower @ 240V - Maximum
2 hp
DC Voltage Rating
12-24V DC
Current Rating - Maximum
21 A
Number of Trippers - Maximum
96
Body Material
Plastic
Time Minimum Setting
16 min
Time Maximum Setting
25 hr.

Description

Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper No, Enclosure Type Plastic, Min. Time Setting 15 min, Max. Time Setting 23 hr 45 min, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 51/64 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features Override Switch, Synchronous Motor, Mount Flush
