  11. Electromechanical Timer, 7 Day Compact

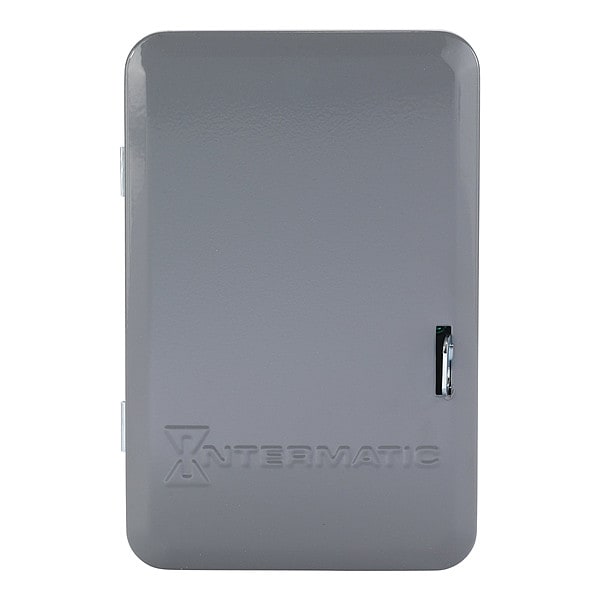

Intermatic Electromechanical Timer, 7 Day Compact T2005 - main

Electromechanical Timer, 7 Day Compact

  • Mfr # T2005

  • Zoro # G2215857

product price: $241.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
20 A
Enclosure Type
STEEL
Min. Time Setting
2 hr
Max. Time Setting
22 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T2005
Zoro #
G2215857
UPC #
078275460010
Country of Origin
Mexico

Dimensions

Height
7 3/4 in
Depth
3 in
Width
5 in
Product Height
7.875 in; 200 mm
Wire Size Min
#14 AWG
Product Depth
3.4375 in; 87.3 mm
Product Width
5.125 in; 130.2 mm
Wire Size Max
#12 AWG
Product Height (in)
7.875
Product Depth (in)
3.4375
Product Width (in)
5.125
Overall Depth
3 7/16 in
Overall Width
5 1/8 in
Overall Height
7 7/8 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
20 A
Enclosure Type
STEEL
Min. Time Setting
2 hr
Max. Time Setting
22 hr
Contact Form
SPDT
Max. On/Off Cycles
6
NEMA Rating
1
Description/Special Features
Heavy-duty Clutchless Gears Prevent Slipping
Contact HP @ 120V
1/2 hp
Nominal Max. Time Setting
7 day
Number of Trippers Included
84
Contact HP @ 240V
1 hp
Mount
Screw
Time Setting Range
2 hr. to 22 hr.
Extra Trippers
2E132
Day Skipper
No
Number of Poles
1
Type
7-Day
Standards
cCSAus
Product Type
Timer
Resistive Load Ratings
20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz
Wiring Option
Terminals
Power Consumption Max W
3 W
CSA Certification
cCSAus
Skipper Wheel Operation Mode
Not Included
Number Of Circuits
1
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control
Resistive Load Ratings Ranges
20 A, 125, 208-277 VAC, 60 Hz
Input Voltage Ranges
120 VAC, 60 Hz
Minimum On Off Time
2 hours
Switch Type
SPDT
Motor Load Ratings
1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Operating Temperature Min
-40°C
Market
Commercial; Industrial
Solutions
Machinery & Pumps; Panel Integrators
Operating Temperature Max
130°C
Packaging Applications
Pumps; Lighting; Motors; Ventilation Systems; Fans; Electrical Pumps
Has Manual Override CVL
Yes
Maximum On Off Operations
42
Operation Mode
7 Days
Minimum ON/OFF Times
2-Hours
Skipper Wheel
Not Included
Motor Load Ratings Ranges
1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Has Manual Override
Yes
Operating Temperature Max (°F)
130
Maximum Power Consumption (W)
3 W
Input Voltage Range(s)
120 VAC, 60 Hz
Features
Minimum 2-hour timing intervals; Up to 42 ON/OFF operations per week; Type 1 rated metal indoor enclosure
Resistive
20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
Maximum ON/OFF Operations
42
Operating Temperature Max (°F)
130
Operating Temperature Min (°F)
-40
Current Rating - Maximum
20 A
Time Setting - Minimum
2 hr
Horsepower @ 240V - Maximum
1 hp
Operating Temperature - Minimum
-40 Degrees F
AC Voltage Rating
120V AC
Application
Lighting
Operating Temperature - Maximum
130 Degrees F
Body Material
Steel
Indoor/Outdoor Usage
Indoor
NEMA Enclosure Rating
1
Mounting Style
Surface
Time Setting - Maximum
7 day
Horsepower @ 120V - Maximum
1/2 hp
Series
T2000
On/Off Cycles - Maximum
42
Number of Trippers - Maximum
84
Time Minimum Setting
3 hr.
Time Maximum Setting
7 Days

Description

Electromechanical Timer, 7-Day, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 20 A, Contact HP @ 120V 1/2 hp, Contact HP @ 240V 1 hp, Day Skipper No, Enclosure Type Steel, NEMA Rating 1, Min. Time Setting 2 hr, Max. Time Setting 22 hr, Max. On/Off Cycles 6, Width 5 in, Depth 3 in, Height 7 3/4 in, Number of Trippers Included 84, Extra Trippers 2E132, Description/Special Features Heavy-duty Clutchless Gears Prevent Slipping, Mount Screw, Standards cCSAus
