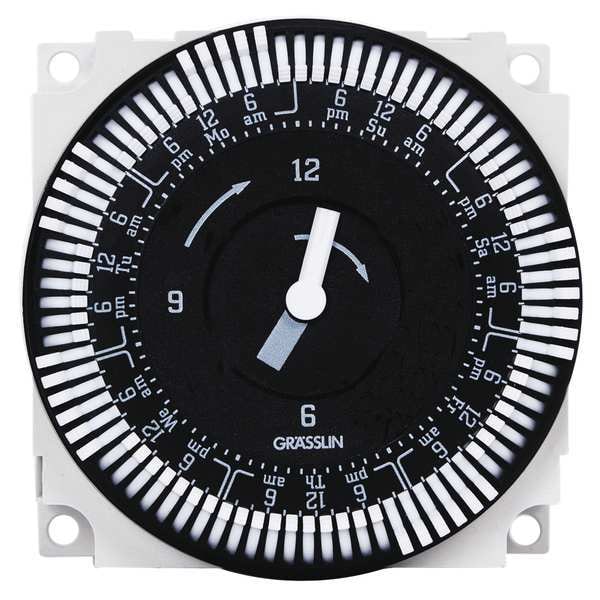

Intermatic Electromechanical Timer, 7-Day, SPDT, 21A FM1SWUZ-120U - main

Electromechanical Timer, 7-Day, SPDT, 21A

  • Mfr # FM1SWUZ-120U

  • Zoro # G7262394

product price: $94.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
21 A
Enclosure Type
STEEL
Min. Time Setting
2 hr
Max. Time Setting
6 days 22 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FM1SWUZ-120U
Zoro #
G7262394
UPC #
614573122016
Country of Origin
Germany

Dimensions

Depth
2 5/16 in
Width
3 5/16 in
Height
3 1/2 in
Product Depth
1 1/4 in; 32 mm
Product Width
2 23/64 in; 60 mm
Product Height
2 23/64 in; 60 mm
Product Width (in)
2.359375
Product Height (in)
2.359375
Product Depth (in)
1.25
Overall Height
2 3/8 in
Overall Depth
1 1/4 in
Overall Width
2 3/8 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
21 A
Enclosure Type
STEEL
Min. Time Setting
2 hr
Max. Time Setting
6 days 22 hr
Contact Form
SPDT
Max. On/Off Cycles
48
Mount
Panel
NEMA Rating
3R
Time Setting Range
2 hr. to 6 days 22 hr.
Contact HP @ 120V
1 hp
Contact HP @ 240V
2 hp
Day Skipper
Yes
Standards
cCSAus, CE, cRUus
Description/Special Features
True Clock Face
Type
7-Day
Number of Trippers Included
96
Nominal Max. Time Setting
7 day
Operating Temp.
-40 Degrees to 185 Degrees F
Number of Poles
1
Product Type
Timer
CSA Certification
cCSAus
Timing Interval
2 hrs
Minimum Cycle Time
2 hrs
Applications
Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
Wiring Option
1/4" Quick connect terminals
Solutions
Refrigeration; Ventilation; Water Treatment; Generator Exercising
Has Captive Trippers CVL
Yes
UL Cerfication File Number
E10694
Motor Load Ratings
1 HP, 120 VAC; 2 HP, 250 VAC
Mounting Options
Panel
Operating Temperature Max
185°C
Maximum Cycle Time
7 days
Packaging Applications
Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems
Shortest Switching Time
ON/OFF 2 hours
Resistive Load Ratings
21 A, 250 VAC
Clock Drive Type
Synchronous
Application Compatibilities
Incandescent; Fluorescent; CFL; LED
Power Consumption Max
1 VA
Tungsten Load Ratings
1350 W, 120 VAC
Operating Temperature Min
-40°C
Input Voltage Ranges
120 VAC, 60 Hz
Has Realtime Clock Face CVL
Yes
Operating Humidity
0 to 95%, Non-condensing
Switch Type
SPDT
Market
Commercial; Industrial
Has Real-time Clock Face
Yes
Resistive
21 A, 250 VAC
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 250 VAC
Input Voltage Range(s)
120 VAC, 60 Hz
Features
Noise Immune
Mechanism Type
Electromechanical
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
185
Tungsten (NO)
1350 W, 120 VAC
Has Captive Trippers
Yes
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
185
DC Voltage Rating
24V DC
Horsepower @ 120V - Maximum
1 hp
On/Off Cycles - Maximum
48
Series
FM1
AC Voltage Rating
120V AC
Number of Trippers - Maximum
96
Time Setting - Minimum
2 hr
Operating Temperature - Minimum
-40 Degrees F
Horsepower @ 240V - Maximum
2 hp
Operating Temperature - Maximum
185 Degrees F
Current Rating - Maximum
21 A
NEMA Enclosure Rating
No Enclosure
Time Setting - Maximum
7 day
Indoor/Outdoor Usage
Indoor
Mounting Style
Panel
Body Material
Steel
Application
Machinery, HVAC
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED
Time Minimum Setting
3 hr.
Time Maximum Setting
8 day

Description

Electromechanical Timer, 7-Day, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper Yes, Enclosure Type Steel, NEMA Rating 3R, Min. Time Setting 2 hr, Max. Time Setting 6 days 22 hr, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 1/2 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features True Clock Face, Mount Panel, Standards cCSAus, CE, cRUus
