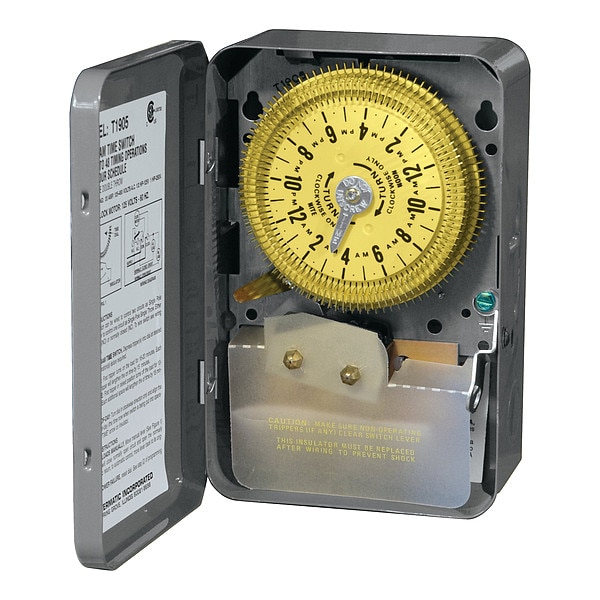

Intermatic Electromechanical Timer, Multi Operation T1905 - main

Electromechanical Timer, Multi Operation

  • Mfr # T1905

  • Zoro # G0379111

product price: $169.40
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
20 A
Enclosure Type
Steel
Min. Time Setting
15 min
Max. Time Setting
23-3/4 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T1905
Zoro #
G0379111
UPC #
078275191013
Country of Origin
Mexico

Dimensions

Height
7 3/4 in
Width
5 in
Depth
3 in
Wire Size Min
#14 AWG
Product Depth
3.4375 in; 87.3 mm
Product Width
5.125 in; 130.2 mm
Product Height
7.875 in; 200 mm
Wire Size Max
#12 AWG
Product Height (in)
7.875
Product Depth (in)
3.4375
Product Width (in)
5.125
Overall Height
7 7/8 in
Overall Width
5 1/8 in
Overall Depth
3 7/16 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
20 A
Enclosure Type
Steel
Min. Time Setting
15 min
Max. Time Setting
23-3/4 hr
Contact Form
SPDT
Max. On/Off Cycles
48
Contact HP @ 240V
1 hp
Contact HP @ 120V
1/2 hp
Nominal Max. Time Setting
24 hr
Description/Special Features
Manual On/Off Override does not Interfere with Program
NEMA Rating
1
Number of Poles
1
Day Skipper
No
Time Setting Range
15 min. to 23-3/4 hr.
Type
24-Hour, Multioperation
Number of Trippers Included
96
Mount
Screw
Operating Temp.
-40 to +130
Extra Trippers
2E132
Standards
cCSAus
Product Type
Timer
Operation Mode
25 hour
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control
Minimum On Off Time
15 min
Wiring Option
Terminals
Motor Load Ratings
1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Input Voltage Ranges
125 VAC, 60 Hz
Operating Temperature Max
130°C
Packaging Applications
Poultry Feeders; Filters; Heaters; Blowers; Dairy Equipment; Foggers; Fans; Lighting; Electrical Pumps; Motors
Power Consumption Max W
3 W
Maximum On Off Operations
48
Skipper Wheel Operation Mode
Not Included
Market
Commercial; Industrial
Resistive Load Ratings
20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz; 20 A, 480 VAC, 60 Hz
CSA Certification
cCSAus
Operating Temperature Min
-40°C
Number Of Circuits
1
Resistive Load Ratings Ranges
20 A, 125-480 VAC, 60 Hz
Switch Type
SPDT
Has Manual Override CVL
Yes
Solutions
Machinery & Pumps; Panel Integrators
Operating Temperature Max (°F)
130
Skipper Wheel
Not Included
Maximum Power Consumption (W)
3 W
Minimum ON/OFF Times
15 min
Input Voltage Range(s)
125 VAC, 60 Hz
Motor Load Ratings Ranges
1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Resistive
20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz
Features
Captive Trippers Slide In/Out of Dial
Has Manual Override
Yes
Maximum ON/OFF Operations
48
Application
Lighting
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
130
Current Rating - Maximum
20 A
Operating Temperature - Minimum
-40 Degrees F
Horsepower @ 120V - Maximum
1/2 hp
AC Voltage Rating
125V AC
Indoor/Outdoor Usage
Indoor
Mounting Style
Surface
NEMA Enclosure Rating
1
Horsepower @ 240V - Maximum
1 hp
Body Material
Steel
Number of Trippers - Maximum
96
On/Off Cycles - Maximum
48
Operating Temperature - Maximum
130 Degrees F
Time Setting - Maximum
24 hr
Time Setting - Minimum
15 min
Series
T1900
Time Minimum Setting
16 min
Time Maximum Setting
25 hr.

Description

Electromechanical Timer, 24-Hour, Multioperation, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 20 A, Contact HP @ 120V 1/2 hp, Contact HP @ 240V 1 hp, Day Skipper No, Enclosure Type Steel, NEMA Rating 1, Min. Time Setting 15 min, Max. Time Setting 23-3/4 hr, Max. On/Off Cycles 48, Width 5 in, Depth 3 in, Height 7 3/4 in, Number of Trippers Included 96, Extra Trippers 2E132, Operating Temp. -40 to +130
