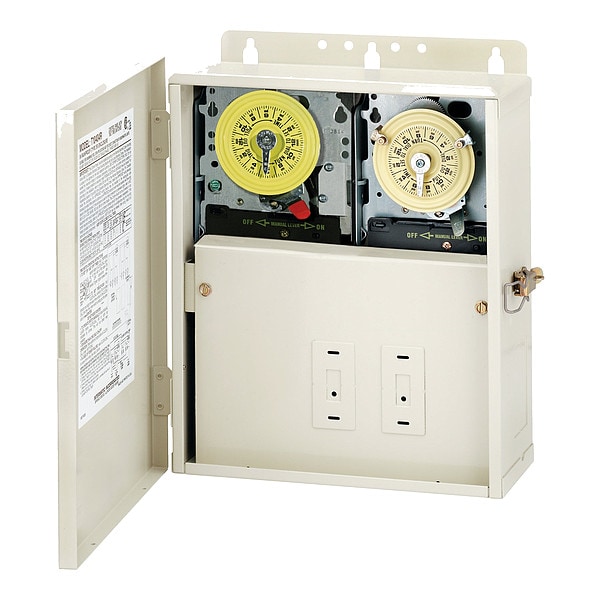

Intermatic Electromechanical Timer, Swim Pool T12404R - main

Electromechanical Timer, Swim Pool

  • Mfr # T12404R

  • Zoro # G0987822

product price: $286.99
/ea
Free Shipping & Returns

Key Features

Voltage
208 to 277V AC
Amps
40 A
Enclosure Type
Steel
Min. Time Setting
1 hr
Max. Time Setting
23 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T12404R
Zoro #
G0987822
UPC #
078275028739
Country of Origin
Mexico

Dimensions

Width
10 3/4 in
Depth
4 in
Height
10 3/4 in
Knockout Dimensions Bottom
(5) combination 1/2" - 3/4" and (2) combination 3/4" - 1"
Product Depth
4.75 in; 120.7 mm
Product Width
10.875 in; 276.2 mm
Knockout Dimensions Back
(1) combination 1/2" - 3/4" and (1) 3/4" - 1"
Knockout Dimensions Left
(1) combination 1/2" - 3/4"
Knockout Dimensions Right
(1) 1 3/4" x 2 3/4"
Product Height
12.875 in; 327 mm
Product Depth (in)
4.75
Product Width (in)
10.875
Product Height (in)
12.875
Overall Depth
4 3/4 in
Overall Width
10 7/8 in
Overall Height
12 7/8 in

Details

Item
Electromechanical Timer
Voltage
208 to 277V AC
Amps
40 A
Enclosure Type
Steel
Min. Time Setting
1 hr
Max. Time Setting
23 hr
Contact Form
DPST
Max. On/Off Cycles
12
Description/Special Features
Additional Heater Circuit Turns Off Gas-fired Swimming Pool Heater Approximately 20 Minutes Before Filter Pump is Turned Off, Circuit Center Contains Two Timer Mechanisms that can be Wired Together or Independently
Day Skipper
Yes
Finish
Beige
Contact HP @ 120V
5
Type
Dual Timing/Heating Circuit Center
Extra Trippers
2E054
Time Setting Range
1 hr. to 23 hr.
NEMA Rating
3R
Mount
Surface
Number of Poles
2
Contact HP @ 240V
5 hp
Nominal Max. Time Setting
24 hr
Standards
cCSAus
Number of Trippers Included
2
Product Type
Water Heater Timer
Color
Beige
Applications
Distribution/Control Panel; Motor Control; Pump Control
Input Voltage Ranges
208-277 VAC, 60 Hz
Inductive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Number Of Circuits
2
Has Heater Protection CVL
Yes
Inductive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Resistive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Number Of Receptacle Switch Knockouts
2
CSA Certification
cCSAus
Power Consumption Max W
3 W
Motor Load Ratings
5 HP, 28 FLA @ 240 VAC, 60 Hz; 2 HP, 24 FLA @ 120 VAC, 60 Hz
Pilot Duty Load Ratings
1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz
Market
Residential; Commercial
Pilot Duty Load Ratings Ranges
1000 VA, 120-240 VAC, 60 Hz
Tungsten Load Ratings
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
Packaging Applications
Pool and Spa Equipment; Lights
Mechanisms
T104M201 & T104M
Switch Type
DPST
Mechanism Supply Voltage
240/240 VAC, 60 Hz
Operating Temperature Min
-40°C
Operating Temperature Max
130°C
Solutions
Pool & Spa
Resistive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Tungsten Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Resistive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Inductive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Input Voltage Range(s)
208-277 VAC, 60 Hz
Material
Metal
Pilot Duty (NO)
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Tungsten (NO)
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Operating Temperature Max (°F)
130
Tungsten Range(s)
40 A, 120-240 VAC, 60 Hz
Motor Load Ratings Ranges
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Heater Protection Switch
Yes
Maximum Power Consumption (W)
3 W
Features
Load Center Dead Front has Two Knockouts
Operating Temperature Max (°F)
130
Operating Temperature Min (°F)
-40
Operating Temperature - Minimum
-40 Degrees F
Body Material
Steel
Body Color
Beige
Time Setting - Maximum
24 hr
Operating Temperature - Maximum
130 Degrees F
Application
Machinery, Motor Controls, Pump Controls, Water Heaters
NEMA Enclosure Rating
3R
On/Off Cycles - Maximum
12
Horsepower @ 120V - Maximum
2 hp
Indoor/Outdoor Usage
Indoor/Outdoor
AC Voltage Rating
208-277V AC
Horsepower @ 240V - Maximum
5 hp
Current Rating - Maximum
40 A
Series
T10000R
Time Setting - Minimum
1 hr
Mounting Style
Surface
Time Minimum Setting
1 hr.
Time Maximum Setting
24 hr.

Description

Electromechanical Timer, Dual Timing/Heating Circuit Center, Number of Poles 2, Contact Form DPST, Voltage 208 to 277V AC, Amps 40 A, Contact HP @ 240V 5 hp, Day Skipper Yes, Enclosure Type Steel, Finish Beige, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 10 3/4 in, Depth 4 in, Height 10 3/4 in, Number of Trippers Included 2, Extra Trippers 2E054
