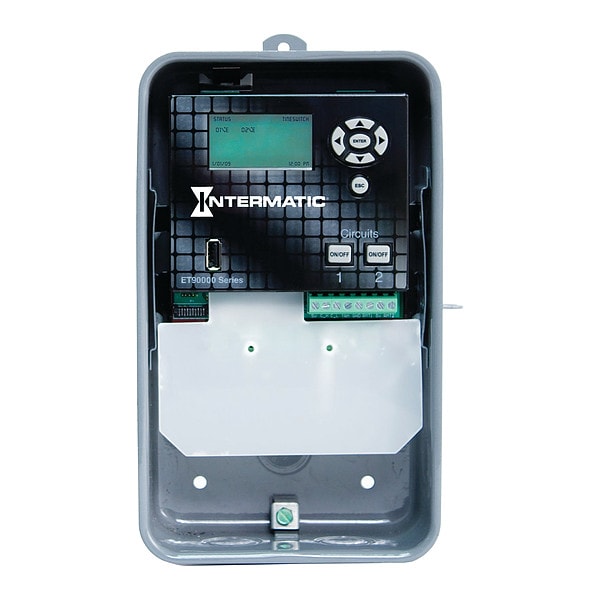

Electronic Timer, Astro 365 Days, SPDT

Electronic Timer, Astro 365 Days, SPDT

Mfr # ET90215CR
Zoro # G4185133

$707.99

Free Shipping & Returns

Key Features

Operation Mode

366 Days

Number of Channels

Contact Form

SPDT

Voltage

120 to 277V AC

Amps

30 A

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

ET90215CR

Zoro #

G4185133

UPC #

078275128453

Country of Origin

Mexico

Dimensions

Depth

3 1/2 in

Width

5 3/4 in

Height

9 1/2 in

Display Height

1 in

Display Width

2 in

Min. Wire Size

#20 AWG

Max. Wire Size

#6 AWG

Wire Size Min

#20 AWG

Product Depth (in)

3.6

Product Height (in)

9.6

Product Width (in)

5.7

Wire Size Max

#6 AWG

Overall Depth

3 5/8 in

Overall Width

5 11/16 in

Overall Height

9 5/8 in

Details

Item

Electronic Timer

Operation Mode

366 Days

Number of Channels

Contact Form

SPDT

Voltage

120 to 277V AC

Amps

30 A

HP @ 120V

NC: 1/4, NO: 1

HP @ 240V

NC: 1/2, NO: 2

Events Available - Electronic Timer

4,000

Available Actions - Electronic Timer

Cycle, On/Off, Pulse

Enclosure

Metal

NEMA Rating

Standards

cCSAus, cULus, California Title 20

Max. On/Off Cycles

4000

Description/Special Features

Copy Programming To Other Time Switches For Backup Purposes Via USB

Number of Pulse Events

4000

Number of Poles

Operating Temp.

-40 Degrees to 120 Degrees F

Event Allocation - Electronic Timer

1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event

Backup Time

100 hr

Min. Time Setting

1 sec

Max. Time Setting

365 day

Color

Gray

Pulse Duration

1 sec to 24 hr

Backup Device

Capacitor

Mounting

Snap-In

Enclosure Type

Outdoor type 3R metal

Hz - Electrical

50-60 Hz

Max. Ballast Amps

8 A, 120-277 VAC, 50/60 Hz

Max. Wattage

16 W

Switch Type

SPDT

Features

Advanced Scheduling Including Relative Events, USB Connection Port

Adjustment Type

Automatic

Application

Lighting, Machinery, Pump Controls

Voltage Type

Auto Voltage

Series

ET90000

General Purpose (NC)

10 A, 120 VAC, 50 Hz, 10 A, 120 VAC, 60 Hz, 10 A, 12 VAC, 50 Hz, 10 A, 12 VAC, 60 Hz, 10 A, 18 VAC, 50 Hz, 10 A, 18 VAC, 60 Hz, 10 A, 208 VAC, 50 Hz, 10 A, 208 VAC, 60 Hz, 10 A, 240 VAC, 50 Hz, 10 A, 240 VAC, 60 Hz, 10 A, 24 VAC, 50 Hz, 10 A, 24 VAC, 60 Hz

Pilot Duty (NC) Range(s)

275 VA, 120-240 VAC, 50/60 Hz

Magnetic Ballast (NC) Range(s)

3 A, 120-277 VAC, 50/60 Hz

Voltage Selection Type

Auto Voltage

Data Transfer Options

Ethernet Optional/USB

Resistive (NC) Range(s)

10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz

General Purpose (NC) Range(s)

10 A, 12-240 VAC, 50/60 Hz

Electronic Series

ET90000 Series

Operation Features

Astronomic, Holiday

Number Of Circuits

Applications

Indoor Lighting Control Machinery & Pump Controls Outdoor Lighting Control Timing/Scheduling ON/OFF

Motor Load Ratings NC Ranges

1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz

Wiring Option

Terminals

Electronic Ballast Load Ratings NO Ranges

8 A, 120-277 VAC, 50/60 Hz

Electronic Ballast (NO)

8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz

Magnetic Ballast (NC)

3 A, 120 VAC, 50 Hz, 3 A, 120 VAC, 60 Hz, 3 A, 208 VAC, 50 Hz, 3 A, 208 VAC, 60 Hz, 3 A, 240 VAC, 50 Hz, 3 A, 240 VAC, 60 Hz, 3 A, 277 VAC, 50 Hz, 3 A, 277 VAC, 60 Hz

Daylight Savings Adjustment

Automatic

Maximum ON/OFF Times

365 days

Backup Restoration Time

30 Minutes

Minimum Pulse Time

1 sec

Backup Protection Time

100 Hour

Input Voltage Range(s)

120-277 VAC, 50/60 Hz

Magnetic Ballast (NO)

20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 50 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 50 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 50 Hz, 20 A, 277 VAC, 60 Hz

Minimum ON/OFF Times

1 sec

UL Certification

CULUS

Resistive (NO) Range(s)

20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz

Backup Type

Supercapacitor

General Purpose (NO)

30 A, 120 VAC, 50 Hz, 30 A, 120 VAC, 60 Hz, 30 A, 12 VAC, 50 Hz, 30 A, 12 VAC, 60 Hz, 30 A, 18 VAC, 50 Hz, 30 A, 18 VAC, 60 Hz, 30 A, 208 VAC, 50 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 50 Hz, 30 A, 240 VAC, 60 Hz, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC, 60 Hz

Maximum ON/OFF Operations

2000

On Off Operations

2000

Tungsten (NO) Range(s)

5 A, 12-120 VAC, 50/60 Hz

Pilot Duty (NC)

275 VA, 120 VAC, 50 Hz, 275 VA, 120 VAC, 60 Hz, 275 VA, 208 VAC, 50 Hz, 275 VA, 208 VAC, 60 Hz, 275 VA, 240 VAC, 50 Hz, 275 VA, 240 VAC, 60 Hz

Pilot Duty (NO) Range(s)

470 VA, 120-240 VAC, 50/60 Hz

Pilot Duty (NO)

470 VA, 120 VAC, 50 Hz, 470 VA, 120 VAC, 60 Hz, 470 VA, 208 VAC, 50 Hz, 470 VA, 208 VAC, 60 Hz, 470 VA, 240 VAC, 50 Hz, 470 VA, 240 VAC, 60 Hz

Operating Temperature Min (°F)

-40

Tungsten (NO) Load Ratings

5 A, 110 VAC, 50 Hz, 5 A, 110 VAC, 60 Hz, 5 A, 115 VAC, 50 Hz, 5 A, 115 VAC, 60 Hz, 5 A, 12 VAC, 50 Hz, 5 A, 12 VAC, 60 Hz, 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 24 VAC, 50 Hz, 5 A, 24 VAC, 60 Hz, 5 A, 50 VAC, 50 Hz, 5 A, 50 VAC, 60 Hz

Magnetic Ballast (NO) Range(s)

20 A, 120-277 VAC, 50/60 Hz

General Purpose (NO) Range(s)

30 A, 12-240 VAC, 50/60 Hz

Operating Temperature Max (°F)

104

Motor Load Ratings NO Ranges

1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz

Maximum Power Consumption (W)

16 W

Maximum Pulse Time

23 hours, 59 minutes

Operating Temperature Max (Â°F)

104

Operating Temperature Min (Â°F)

-40

Time Setting - Minimum

1 sec

Astronomic Functionality

Yes

Horsepower @ 120V - Maximum

1 hp

Pulse Duration - Minimum

1 sec

Operating Temperature - Minimum

-40 Degrees F

Body Color

Grey

Timer Functions

On/Off

Electrical Installation Type

Screw Terminal

Current Rating - Maximum

30 A

Body Material

Metal

NEMA Enclosure Rating

Horsepower @ 240V - Maximum

2 hp

Indoor/Outdoor Usage

Outdoor

Pulse Duration - Maximum

24 hr

Time Setting - Maximum

365 day

Operating Temperature - Maximum

104 Degrees F

AC Voltage Rating

120-277V AC

Mounting Style

Surface

Events Available

2,001

Time Minimum Setting

2 sec

Time Maximum Setting

366 day

Description

Electronic Timer, Operation Mode Astro 365 Days, Number of Channels 2, Contact Form SPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V NC: 1/4, NO: 1, HP @ 240V NC: 1/2, NO: 2, Events Available - Electronic Timer 4,000, Available Actions - Electronic Timer Cycle, On/Off, Pulse, Event Allocation - Electronic Timer 1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event, Pulse Duration 1 sec to 24 hr, Enclosure Metal, Mounting Snap-In, Number of Poles 1
