  11. Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

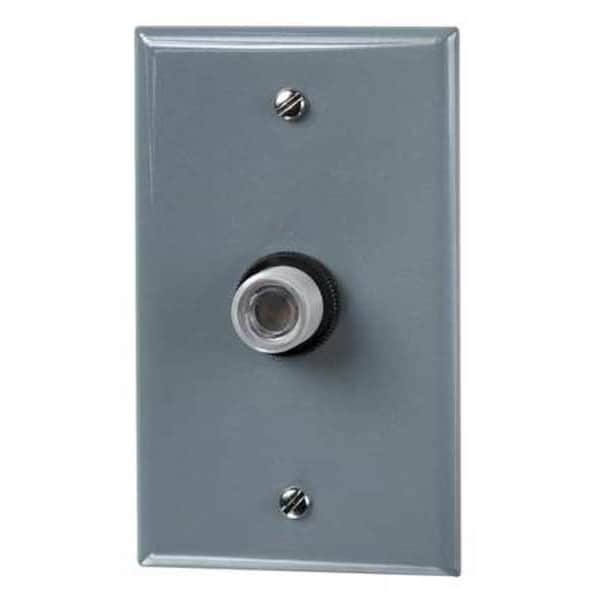

Intermatic Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min K4321C - main

Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4321C

  • Zoro # G4297352

product price: $19.59
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Includes
Gasket, Wall Plate
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4321C
Zoro #
G4297352
UPC #
078275128842
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
2 yr
Length
4 1/2 in
Width
2 3/4 in
Overall Height
1.81 in
Wire Size Max
#18 AWG
Wire Lead Length
9 in; 228.6 mm
Stem Thread Size
3/8"-18
Stem Diameter
3/8 in

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Includes
Gasket, Wall Plate
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Housing Material
Polycarbonate
Description/Special Features
Wall Plate Included
Standards
cCSAus, California Title 20, UL Listed
Setting
Dusk to Dawn
Enclosure Type
Raintight
Contact Form
SPST
Market
Commercial; Residential; Industrial
Input Voltage Ranges
120 VAC, 50/60 Hz
Tungsten Load Ratings
15 A, 1800 W
Photocontrol Sensor Location
Front
Wiring Option
Wire leads
Photocontrol Style
In-Wall
UL Certification
UL
Applications
Outdoor Lighting Control
Activation On
1 to 5 fc
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Activation Off
3 to 15 fc
Fail Mode
ON
Photocontrol Switch Type
Mechanical Bimetal
Photocontrol Type
Thermal
Expected Lifetime Years
5
Photocontrol Photocell Type
Cadmium Sulfide
CSA Certification
cCSAus
Magnetic Ballast Load Ratings
8.3 A, 1000 VA
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Expected Lifetime Operations
3650
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch
Time Delay - Maximum
90 sec
AC Operating Voltage
120V AC
Incandescent Current - Maximum
15 A
Time Delay - Minimum
30 sec
Stem Thread Type
NPSM
On Illumination - Maximum
5 fc
Indoor/Outdoor Usage
Outdoor
Off Illumination - Minimum
3 fc
Mounting Style
In-Wall
Off Illumination - Maximum
15 fc
Compatible Lighting
Fluorescent, HID, Incandescent
Ballast Current - Maximum
8.3 A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Wattage - Maximum
1,800 W
Body Color
Gray
On Illumination - Minimum
1 fc

Description

Photocontrol, Mounting Fixed, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 4 1/2 in, Width 2 3/4 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Gasket, Wall Plate
