  6. HID, Incandescent Photocontrol, 4,155 W, Blue/White, 90 sec Max, 30 sec Min

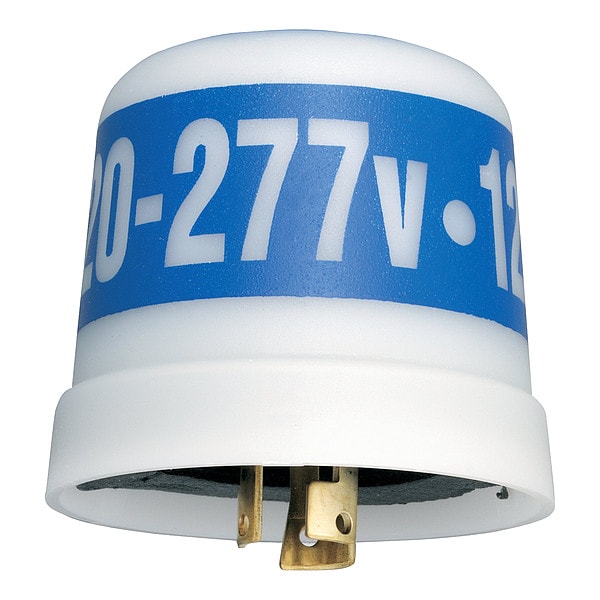

Intermatic HID, Incandescent Photocontrol, 4,155 W, Blue/White, 90 sec Max, 30 sec Min LC4536LAC - main

HID, Incandescent Photocontrol, 4,155 W, Blue/White, 90 sec Max, 30 sec Min

  • Mfr # LC4536LAC

  • Zoro # G1917544

product price:  $29.45
/ea

Key Features

Compatible Lighting
HID, Incandescent
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,155 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC4536LAC
Zoro #
G1917544
UPC #
078275029569
Country of Origin
Mexico

Dimensions

Length
2 3/4 in
Depth
3 in
Manufacturers Warranty Length
2 yr
Width
3 in
Overall Height
2.75 in
Product Diameter
3 in; 76.2 mm

Details

Item
Photocontrol
Compatible Lighting
HID, Incandescent
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,155 W
Foot Candles On
0.5
Time Delay - Maximum
90 sec
Foot Candles Off
15
Time Delay - Minimum
30 sec
Housing Material
Polypropylene
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Blue/White
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Setting
Dusk to Dawn
Contact Form
SPST
Description/Special Features
Lightning Arrestor with Built in Delay
Enclosure Type
Raintight
Standards
ANSI C136.10, cCSAus, California Title 20, UL Listed
Surge Protection Technology
Spark Gap Surge Arrestor
Photocontrol Type
Thermal
Photocontrol Style
Locking type
Photocontrol Switch Type
Mechanical Bimetal
Expected Lifetime Operations
3650
Magnetic Ballast Load Ratings
8.3 A, 1000-2300 VA
Applications
Outdoor Lighting Control
Input Voltage Ranges
120-277 VAC, 50/60 Hz
Tungsten Load Ratings
15 A, 1800-4155 W
Activation Off
15 fc
Photocontrol Sensor Location
Side
Expected Lifetime Years
5
Photocontrol Photocell Type
Cadmium Sulfide
Fail Mode
ON
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
UL Certification
UL
Solutions
Lighting Control; Panel Integrators
Market
Commercial; Utility; Industrial
Activation On
5 fc
CSA Certification
cCSAus
Features
Surge Protection, Conformal Coated PCB, Zero-Crossing Circuitry, 10,000 ON/OFF Cycles, Microprocessor-Controlled Zero-Cross Switching, IR Filter, Non-Drift Silicon Light Sensor, Spark Gap Surge Arrestor
Mounting Style
Locking
Operating Temperature - Maximum
158 Degrees F
Indoor/Outdoor Usage
Outdoor
Off Illumination - Maximum
15 fc
On Illumination - Maximum
5 fc
Operating Temperature - Minimum
-40 Degrees F

Description

Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 4,155, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cCSAus, California Title 20, UL Listed, Includes Not Applicable
