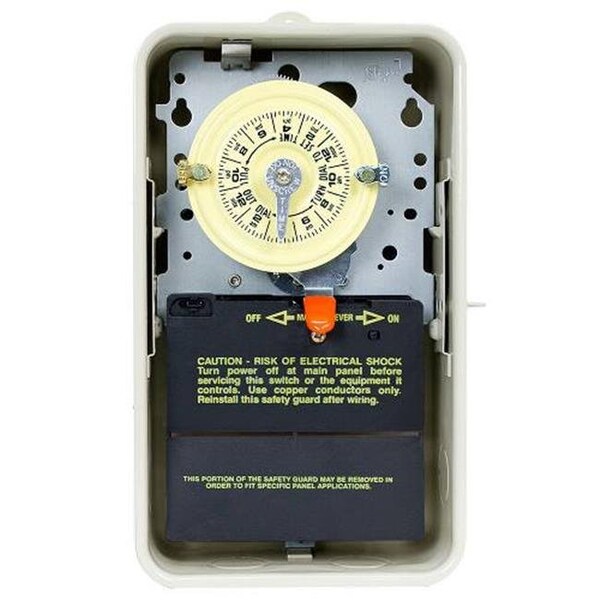

Intermatic T104R3 220V Indoor & Outdoor Timer Switch in Metal Enclosure
Mfr # T104R3
Zoro # G804154838
product price: $177.99
/ea
Free Shipping & Returns
Key Features
Height
10.125 in
Application
Heater Thermostat Control; Motor Control; Pump Control; Water Circulation
Overall Depth
3-5/8 in
Standards
cCSAus, cULus; cULus; cCSAus; LED
Max. Operating Temperature
130°F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
T104R3
Zoro #
G804154838
UPC #
78275026315
Country of Origin
China
Dimensions
Height
10.125 in
Overall Depth
3-5/8 in
Knockout Dimensions
1/2 in and 3/4 in
Details
Application
Heater Thermostat Control; Motor Control; Pump Control; Water Circulation
Standards
cCSAus, cULus; cULus; cCSAus; LED
Max. Operating Temperature
130°F
Electronic Ballast Load Ratings
16 A, 120V AC; 16 A, 208V AC; 16 A, 240V AC; 16 A, 277V AC
Watts
3 W
Tungsten Load Ratings
40 A, 120V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 277V AC, 60 Hz
Heater Control Output
10 A, 250V AC, 60 Hz
Switch Type
DPST
Resistive Load Ratings
40 A, 480V AC, 60 Hz; 40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz; 40 A, 347V AC, 60 Hz
Maximum On Off Operations
12
Motor Load Ratings
2 HP, 24 FLA @ 120V AC, 60 Hz; 5 HP, 28 FLA @ 240V AC, 60 Hz
Min. Operating Temperature
-40°F
Enclosure Type
Type 3R
Inductive Load Ratings
40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz
Operation Mode
24 hr
Pilot Duty Load Ratings
1000V A, 120V AC, 60 Hz; 1000V A, 208V AC, 60 Hz; 1000V A, 240V AC, 60 Hz; 1000V A, 277V AC, 60 Hz
Input Voltage
208 to 277V AC
Number of Circuits
1
Description
Features
- Heavy-duty mechanical time switches control a single load
- Highest motor load ratings in the industry
- 12 on/off operations per day
- One on and one off tripper included
- With pool heater protection
- Teeter-type terminals for multiple load connections
- Operation Mode: 24-hour
- Switch Type: SPST
- Voltage: 220V
- Weight: 3.35 lbs
