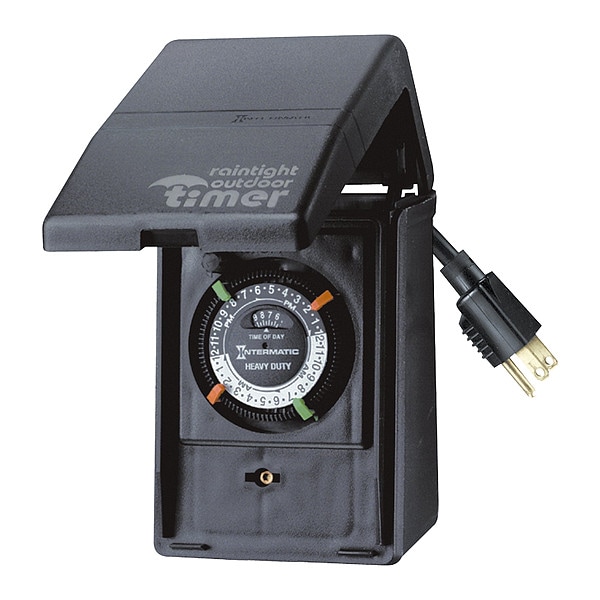

Intermatic Outdr Mech Plug-In Timer w Built-In Encl P1121 - main

Outdr Mech Plug-In Timer w Built-In Encl

  • Mfr # P1121

  • Zoro # G1771273

product price: $42.19
/ea
Sold in multiples of 12 for $506.28

Key Features

Min. Time Setting
30 min
Max. Time Setting
24 hr
Voltage
120V AC
Watts
1,800 W
Receptacles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P1121
Zoro #
G1771273
UPC #
078275083950
Country of Origin
Mexico

Dimensions

Length
5 5/8 in
Depth
3 1/4 in
Width
3 5/8 in
Length (Straight Wireway)
5 5/8 in
Product Depth
3 1/4 in; 83 mm
Cord Size
13"
Product Width
3 5/8 in; 92 mm
Product Height
5 5/8 in; 143 mm
Product Depth (in)
3.25
Product Height (in)
5.625
Product Width (in)
3.625
Overall Width
3 5/8 in
Cord Length
13 in
Overall Depth
3 1/4 in
Overall Height
5 5/8 in

Details

Item
Plug-In Timer
Min. Time Setting
30 min
Max. Time Setting
24 hr
Voltage
120V AC
Watts
1,800 W
Receptacles
2
Max. On/Off Cycles
2
Color
Black
Indoor / Outdoor
Outdoor
Amps
15 A
HP @ 120V
1 hp
Features
Built Into Outdoor Rated Enclosure with Clear or Black Flip Cover, Grounded Standard or Locking Type Style NEMA Plug, More On/Off Events with Addition of Extra Trippers, On/Off Settings Per Day with Removable Trippers, Plugs Directly Into Wall Outlet, Receptacle
Style
Plug In
Digital/Mechanical
Mechanical
Standards
cCSAus
Incandescent Load Ratings
1800 W, 120 VAC, 60 Hz
On Off Operations
2
Mechanism Type
Analog/Mechanical
Tungsten Load Ratings
1800 W, 120 VAC, 60 Hz
Input Voltage Ranges
120 VAC, 60 Hz
CSA Certification
cCSAus
Resistive Load Ratings
15 A, 120 VAC, 60 Hz
Market
Residential
Plug Configuration
5-15
Application Compatibilities
Incandescent; Tungsten
Solutions
Energy Savings; Landscape; Pool & Spa; Comfort & Convenience
Applications
Outdoor Lighting Control; Landscape Water Control; Pool Pump; Outdoor Water Fountains
Motor Load Ratings
1 HP, 15 FLA, 90 LRA @ 120 VAC
Usage Environments
Outdoor
Minimum On Off Time
30 min
Packaging Applications
Pumps; Water Fountains; Aerators; Landscape/Holiday Lighting; Engine Block Heaters
Cover Color
Black
NEMA Plug Configuration
5-15P
Plug Configurations
5-15
Resistive
15 A, 120 VAC, 60 Hz
Tungsten (NO)
1800 W, 120 VAC, 60 Hz
Input Voltage Range(s)
120 VAC, 60 Hz
Minimum ON/OFF Times
30 min
Motor Load Ratings Ranges
1 HP, 15 FLA, 90 LRA @ 120 VAC
Astronomic Functionality
Not Astronomic
Current Rating - Maximum
15 A
NEMA Receptacle Configuration
5-15R
Horsepower @ 120V - Maximum
1 hp
Compatible Lighting
Incandescent, HID
AC Voltage Rating
120V AC
Display Type
Mechanical
On/Off Cycles - Maximum
2
Number of Receptacles
2
Body Color
Black
Application
Sprinklers, Lighting, Pump Controls, Pool
Wattage - Maximum
1,800 W
Time Setting - Maximum
24 hr
Indoor/Outdoor Usage
Outdoor
Time Setting - Minimum
30 min

Description

Plug-In Timer, Mechanical, Min. Time Setting 30 min, Max. Time Setting 24 hr, Max. On/Off Cycles 2, Voltage 120V AC, Watts 1,800 W, Amps 15 A, HP @ 120V 1 hp, Outdoor, Receptacles 2, Color Black, Length 5 5/8 in, Width 3 5/8 in, Depth 3 1/4 in, Style Plug In, Standards cCSAus
