  11. Spring-Wound Timer, Ivory, 277V AC

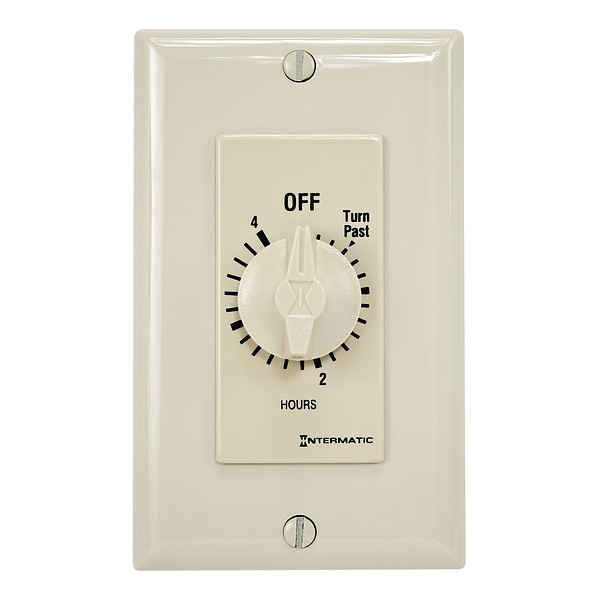

Intermatic Spring-Wound Timer, Ivory, 277V AC FD34H - main

Spring-Wound Timer, Ivory, 277V AC

  • Mfr # FD34H

  • Zoro # G8346590

product price: $84.29
/ea
Free Shipping & Returns

Key Features

Type
Analog/Mechanical
Timing Range
0 to 4 hr
Contact Form
SPDT
Hold Feature
No
Faceplate Color
Ivory
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FD34H
Zoro #
G8346590
UPC #
078275185807
Country of Origin
Tunisia

Dimensions

Height
4-1/4 in
Depth
1-1/4 in
Width
1-3/4 in
Product Depth (in)
1.25
Product Width (in)
1.75
Product Height (in)
4.125
Overall Depth
1 1/4 in
Overall Width
1 3/4 in
Overall Height
4 1/8 in

Details

Item
Spring Wound Timer
Type
Analog/Mechanical
Timing Range
0 to 4 hr
Contact Form
SPDT
Hold Feature
No
Faceplate Color
Ivory
Max. Amps @ 125VAC
20 A
Number of Gangs
2
Max. Amps @ 277VAC
10 A
HP @ 240V
2
Standards
cCSAus, RU
Max. Amps @ 250VAC
10 A
HP @ 120V
1
Operating Temp. Range
40 to 120°C
Application
HVAC, Lighting, Motor
Watts
Resistive Heater: 2500 to 2770 W; Tungsten Incandescent: 875 W
Light Type
Incandescent; Fluorescent; CFL; LED
Input Voltage
125/277 VAC
Tungsten (Incandescent) Range(s)
7 A, 125 VAC, 50/60 Hz, 875 W
Mechanism Type
Analog/Mechanical
Wiring Configurations
Single
Input Voltage Range(s)
125-277 VAC, 50/60 Hz
Wall Plate Configurations
Single-Gang, Multi-Gang
Hold Mode Included
No
Applications
Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control
Resistive Heater
20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Switch Type
SPDT
Neutral Connection Required
No
Countdown Time
4 hrs
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Color
Ivory
Operation Mode
Countdown
Motor Load Ratings Ranges
1 HP, 125 VAC; 2 HP, 250 VAC
Operating Temperature Max (°F)
120
Tungsten Incandescent
7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Operating Temperature Min (°F)
40
Features
Automatically Limit Time for Energy Consuming Loads
Operating Temperature Max (°F)
120
Operating Temperature Min (°F)
40
Time Setting - Maximum
4 hr
Body Color
Ivory
Includes Wall Plate
No
Series
FD
Includes Hold
No Hold Included
Compatible Lighting
Fluorescent, Incandescent, LED
Switch Style
1-Pole
Product Type
Countdown Timer
Indoor/Outdoor Usage
Indoor, Outdoor
AC Voltage Rating
277V AC
Wattage - Maximum
2,770 W
Display Type
Mechanical
Current Rating - Maximum
20 A
Time Range
1 to 4 hr

Description

Spring-Wound Timer, Number of Gangs 1, Features Automatically Limit Time for Energy Consuming Loads, Standards cCSAus, RU
