  11. Timer, Mechanical, 120V, 15A, Wall Switch
This item is Discontinued.

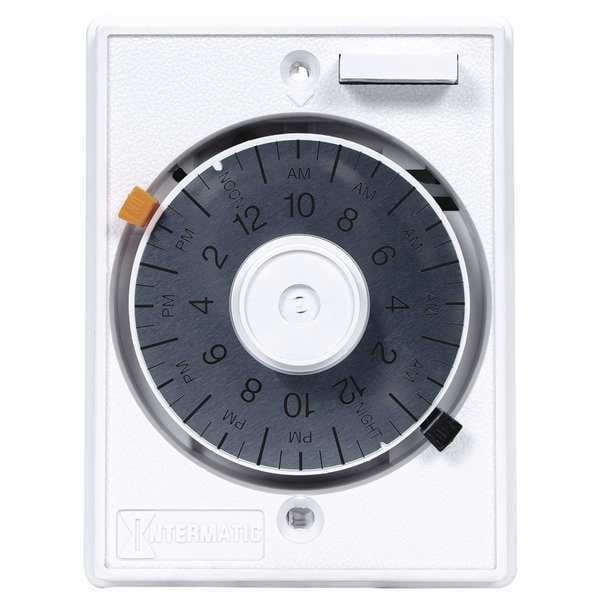

Intermatic Timer, Mechanical, 120V, 15A, Wall Switch E1010

Timer, Mechanical, 120V, 15A, Wall Switch (Discontinued)

  • Mfr # E1010
  • Zoro # G6440962
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E1010
Zoro #
G6440962
UPC #
078275440005
Country of Origin
Mexico

Dimensions

Width
3 1/2 in
Length
5 1/2 in
Depth
3 1/2 in
Length (Straight Wireway)
5 1/2 in
Product Depth (in)
1.375
Product Height (in)
4.25
Product Width (in)
3.25
Overall Depth
1 3/8 in
Overall Height
4 1/4 in
Overall Width
3 1/4 in

Details

Item
Wall Switch Timer
Voltage
120V AC
Max. Time Setting
30 min, 23 hr
Min. Time Setting
30 min
Max. On/Off Cycles
1
Color
White
Watts
1800
HP @ 120V
1 hp
Standards
cCSAus
Number of Poles
1
Style
Wall Switch
Number of Gangs
1
Type of Switch
Electromechanical
Amps
15
Switch Type
1-Pole
Features
Standard Junction Box Mountable, Requires Neutral Connection
Product Type
Wall Switch Timers
Operating Temperature Min (°F)
-4
Operating Temperature Max (°F)
77
Wiring Configurations
Single
Neutral Connection Required
Yes
Incandescent Load Ratings (Single-Gang)
1500 W, 125 VAC, 60 Hz
Mechanism Type
Analog/Mechanical
Maximum ON/OFF Operations
1
Includes Wall Plate
No Wall Plate Included
Input Voltage Range(s)
125 VAC, 60 Hz
Incandescent Single Gang Load Ratings Ranges
1500 W, 125 VAC, 60 Hz
Resistive
15 A, 125 VAC, 60 Hz
Operation Mode
24 hour
Minimum ON/OFF Times
30 min
Wall Plate Configurations
Single-Gang
Motor Load Ratings Ranges
12 FLA @ 125 VAC, 60 Hz
Application Compatibilities
CFL, Fluorescent, Incandescent
Applications
Air Movement & Ventilation Indoor Lighting Control Outdoor Lighting Control
Resistive Load Ratings Ranges
15 A, 125 VAC, 60 Hz
Contact Form
SPST-NO
Operating Temperature Max (°F)
77
Operating Temperature Min (°F)
-4
AC Voltage Rating
125V AC
Display Type
Mechanical
Horsepower @ 120V - Maximum
1 hp
Body Color
White
Time Setting - Minimum
30 min
Indoor/Outdoor Usage
Indoor, Outdoor
Wattage - Maximum
1,500 W
Compatible Lighting
Fluorescent, Incandescent, LED
Current Rating - Maximum
15 A
Switch Style
1-Pole
On/Off Cycles - Maximum
1
Time Setting - Maximum
24 hr
Application
HVAC, Lighting
Includes Hold
No Hold Included

Description

Wall Switch Timer, Min. Time Setting 30 min, Max. Time Setting 30 min, 23 hr, Max. On/Off Cycles 1, Voltage 120V AC, Watts 1800, Amps 15, 1-Pole, HP @ 120V 1 hp, Type of Switch Electromechanical, Color White, Length 5 1/2 in, Width 3 1/2 in, Style Wall Switch, Depth 3 1/2 in, Number of Gangs 1, Features Standard Junction Box Mountable, Requires Neutral Connection, Standards cCSAus
