  11. Timer, Spring Wound, 30 Min, DPST, Silver

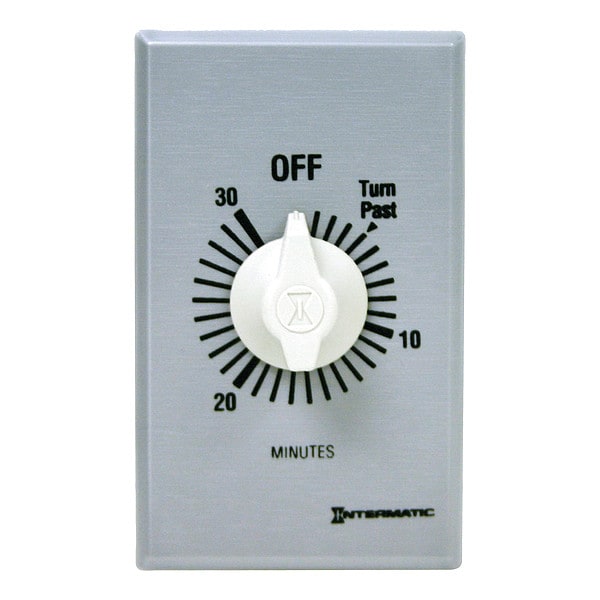

Intermatic Timer, Spring Wound, 30 Min, DPST, Silver FF430M - main

Timer, Spring Wound, 30 Min, DPST, Silver

  • Mfr # FF430M

  • Zoro # G0601964

product price: $76.79
/ea
Free Shipping & Returns

Key Features

Type
Analog/Mechanical
Timing Range
0 to 30 min
Contact Form
DPST
Hold Feature
No
Faceplate Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FF430M
Zoro #
G0601964
UPC #
078275184350
Country of Origin
Tunisia

Dimensions

Depth
1-1/4 in
Width
1-3/4 in
Height
4-1/4 in
Product Width (in)
1.75
Product Height (in)
4.125
Product Depth (in)
1.25
Overall Width
1 3/4 in
Overall Depth
1 1/4 in
Overall Height
4 1/8 in

Details

Item
Spring Wound Timer
Type
Analog/Mechanical
Timing Range
0 to 30 min
Contact Form
DPST
Hold Feature
No
Faceplate Color
Silver
Max. Amps @ 125VAC
20 A
Number of Gangs
2
Knob
Plastic
Max. Amps @ 250VAC
10 A
HP @ 120V
1 hp
HP @ 240V
2 hp
Max. Amps @ 277VAC
10 A
Standards
cCSAus, RU
Operating Temp. Range
40 to 120°C
Light Type
Incandescent; Fluorescent; CFL; LED
Input Voltage
125/277 VAC
Watts
Resistive Heater: 2500 to 2770 W; Tungsten Incandescent: 875 W
Application
HVAC, Lighting, Motor
Motor Load Ratings Ranges
1 HP, 125 VAC; 2 HP, 250 VAC
Wall Plate Configurations
Single-Gang, Multi-Gang
Color
Silver
Operating Temperature Max (°F)
120
Includes Wall Plate
Yes
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Tungsten (Incandescent) Range(s)
7 A, 125 VAC, 50/60 Hz, 875 W
Tungsten Incandescent
7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Switch Type
DPST
Wiring Configurations
Single
Countdown Time
30 min
Hold Mode Included
No
Features
Automatically Limit Time for Energy Consuming Loads
Resistive Heater
20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Operating Temperature Min (°F)
40
Mechanism Type
Analog/Mechanical
Applications
Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control
Neutral Connection Required
No
Input Voltage Range(s)
125-277 VAC, 50/60 Hz
Operation Mode
Countdown
Operating Temperature Max (°F)
120
Operating Temperature Min (°F)
40
Includes Hold
No Hold Included
Horsepower @ 240V - Maximum
2 hp
Product Type
Countdown Timer
Body Color
Silver
Switch Style
1-Pole
Wattage - Maximum
2,770 W
Current Rating - Maximum
20 A
Horsepower @ 120V - Maximum
1 hp
Time Setting - Maximum
30 min
AC Voltage Rating
277V AC
Display Type
Mechanical
Compatible Lighting
Fluorescent, Incandescent, LED
Series
FF
Indoor/Outdoor Usage
Indoor, Outdoor
Time Range
1 to 30 min

Description

Spring-Wound Timer, HP @ 120V 1 hp, HP @ 240V 2 hp, Number of Gangs 1, Features Automatically Limit Time for Energy Consuming Loads, Standards cCSAus, RU
