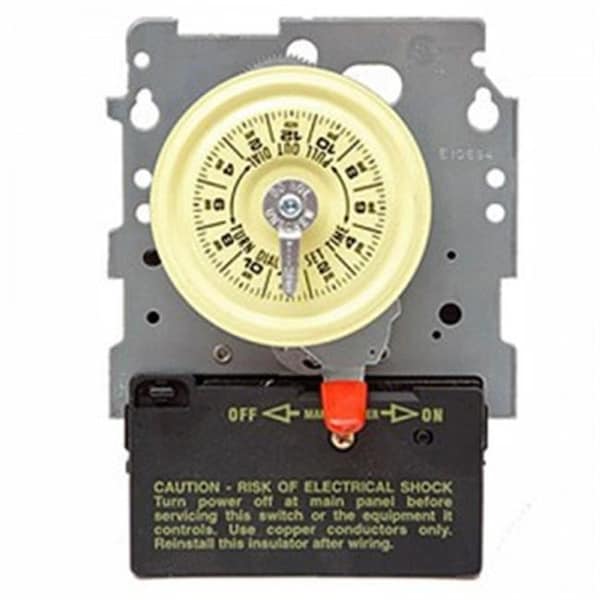

Intermatic Usd T104M Intermatic Timer-Mechanism
Mfr # T104M
Zoro # G204113886
product price: $124.99
/ea
Free Shipping & Returns
Key Features
Standards
cCSAus, UL917, cULus; cULus; cCSAus; LED
Application
Timing/Scheduling ON/OFF; Indoor Lighting Control
Features
Manual Override CVL
Watts
3 W
Min. Operating Temperature
-40°F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
T104M
Zoro #
G204113886
UPC #
-
Country of Origin
United States
Dimensions
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Details
Standards
cCSAus, UL917, cULus; cULus; cCSAus; LED
Application
Timing/Scheduling ON/OFF; Indoor Lighting Control
Features
Manual Override CVL
Watts
3 W
Min. Operating Temperature
-40°F
Inductive Load Ratings
40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz
Motor Load Ratings
2 HP, 24 FLA @ 120V AC, 60 Hz; 5 HP, 28 FLA @ 240V AC, 60 Hz
Switch Type
DPST
Timing Interval
1 hr
Max. Operating Temperature
130°F
Maximum On Off Operations
12
Number of Circuits
1
Tungsten Load Ratings
40 A, 120V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 277V AC, 60 Hz
Number of Trippers Included
1 On / 1 Off
Electronic Ballast Load Ratings
16 A, 120V AC; 16 A, 208V AC; 16 A, 240V AC; 16 A, 277V AC
Resistive Load Ratings
40 A, 480V AC, 60 Hz; 40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz; 40 A, 347V AC, 60 Hz
Pilot Duty Load Ratings
1000V A, 120V AC, 60 Hz; 1000V A, 208V AC, 60 Hz; 1000V A, 240V AC, 60 Hz; 1000V A, 277V AC, 60 Hz
Minimum On/Off Time
1 hr
Heater Control Output
10 A, 250V AC, 60 Hz
Input Voltage
208 to 277V AC
Description
Features
- Designed For Commercial, Industrial &Residential Use
- Highest Motor Load Ratings in the Industry
- 12 On/Off Operations Daily
