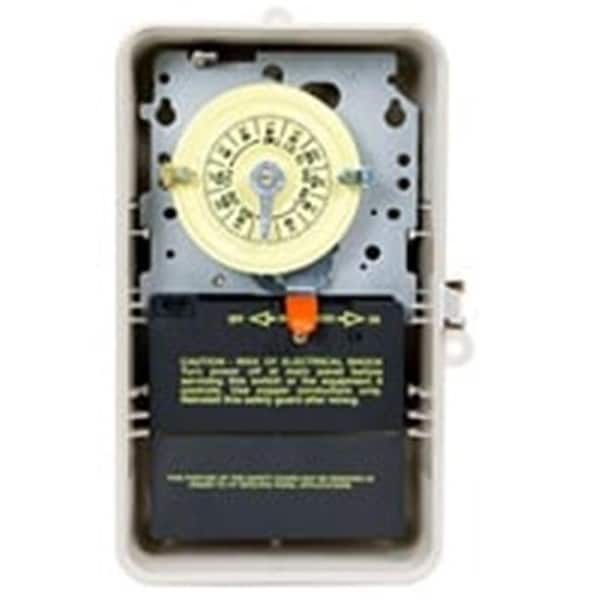

Intermatic USD T104P3 Intermatic 208-277V Time Clock
Mfr # T104P3
Zoro # G504114859
product price: $150.99
/ea
Free Shipping & Returns
Key Features
Height
10 in
Application
Heater Thermostat Control; Motor Control; Pump Control; Water Circulation
Standards
cCSAus, cULus; cULus; cCSAus; LED
Overall Depth
4 in
Input Voltage
208 to 277V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
T104P3
Zoro #
G504114859
UPC #
78275026292
Country of Origin
China
Dimensions
Height
10 in
Overall Depth
4 in
Knockout Dimensions
1/2 in and 3/4 in
Details
Application
Heater Thermostat Control; Motor Control; Pump Control; Water Circulation
Standards
cCSAus, cULus; cULus; cCSAus; LED
Input Voltage
208 to 277V AC
Enclosure Type
Type 3R
Electronic Ballast Load Ratings
16 A, 120V AC; 16 A, 208V AC; 16 A, 240V AC; 16 A, 277V AC
Heater Control Output
10 A, 250V AC, 60 Hz
Maximum On Off Operations
12
Operation Mode
24 hr
Watts
3 W
Switch Type
DPST
Resistive Load Ratings
40 A, 480V AC, 60 Hz; 40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz; 40 A, 347V AC, 60 Hz
Max. Operating Temperature
130°F
Motor Load Ratings
2 HP, 24 FLA @ 120V AC, 60 Hz; 5 HP, 28 FLA @ 240V AC, 60 Hz
Pilot Duty Load Ratings
1000V A, 120V AC, 60 Hz; 1000V A, 208V AC, 60 Hz; 1000V A, 240V AC, 60 Hz; 1000V A, 277V AC, 60 Hz
Number of Circuits
1
Inductive Load Ratings
40 A, 277V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 120V AC, 60 Hz
Min. Operating Temperature
-40°F
Tungsten Load Ratings
40 A, 120V AC, 60 Hz; 40 A, 208V AC, 60 Hz; 40 A, 240V AC, 60 Hz; 40 A, 277V AC, 60 Hz
Description
These heavy-duty Mechanical Time Switches are designed for commercial, industrial and residential applications and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with a minimum ON/OFF time of 1 hour.
Applications:- Booster Pumps
- Lighting
- Hydro Chlorinates Fans
- Air Conditioning
- Music and Signal Systems Heat Pumps
- Switch - DPST
- Clock Supply VAC 60 Hz - 208-277
