3/8 Inch Automotive Steel Coupler x 3/8 Inch Easy-Lock Barb

  • Mfr # CA665

  • Zoro # G104387783


product price:  $10.39
/ea

Key Features

Interchange Type
True-Flate Automotive
Material
Steel
Connection Type
Coupler x Barb
Finish/Coating
Zinc Plated
Barb Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CA665
Zoro #
G104387783
UPC #
791674902751
Country of Origin
China

Dimensions

Barb Size
3/8 in
Thread Size
3/8" Easy-Lock Barb
Body Size - Quick Connect Air Couplings
3/8"

Details

Item
Automotive Coupler
Interchange Type
True-Flate Automotive
Material
Steel
Connection Type
Coupler x Barb
Finish/Coating
Zinc Plated
Seal Material
Buna-N (Nitrile)
Color
Black
Temp. Range
-40 to 212°F
Includes
Stainless Steel Spring
Bearing Material
Stainless Steel
Type
Automotive (True-flate)

Description

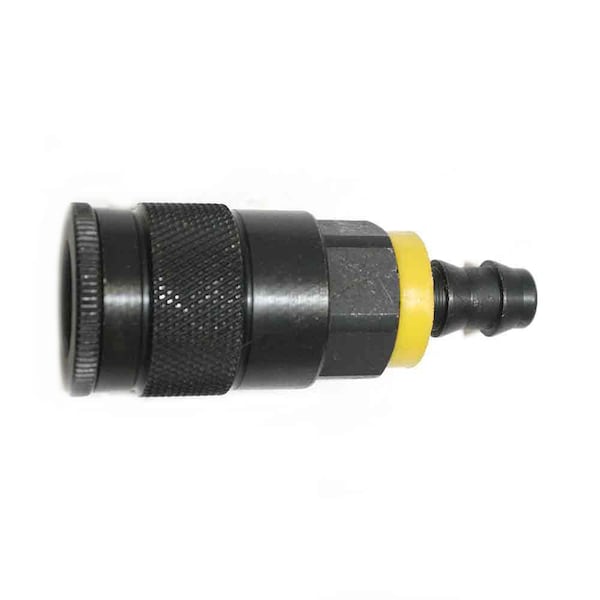

The INTERSTATE PNEUMATICS - CA665 is an automotive coupler supports a quick-connect, tool-free coupling design for connecting to compatible mating plugs/nipples between air or fluid hoses and mating plugs or nipples commonly used in vehicle service and repair. It features a 3/8" body size and a 3/8 in barb size to fit hoses with compatible inner diameters. This coupler employs a True-Flate Automotive interchange type, making it compatible with corresponding fittings that use this standard. The coupling relies on a sliding-sleeve or ball-lock mechanism to provides a sealing interface intended to help reduce leakage when coupled to compatible fittings and installed with hoses that meet the specified size requirements, utilizing a Buna-N (Nitrile) seal material to is intended for use in maintaining a sealed connection under the specified operating temperature range. Its steel body with a zinc plated steel body finish for surface protection against corrosion offers resistance to corrosion and oil exposure under the applicable pressure ratings of the coupler and compatible fittings/hose assemblies, and is rated for operation within a temperature range of -40 to 212°F.

Key Features:

  • Material: Steel body with zinc plated finish for surface protection
  • Connection Type: Coupler x Barb for hose attachment
  • Seal Material: Buna-N (Nitrile), supporting fluid and air sealing
  • Barb Size: 3/8 in to match hose inner diameter
  • Body Size: 3/8" quick connect air coupling dimension
  • Bearing Material: Stainless Steel for durable moving parts
  • Includes: Stainless Steel Spring for the locking mechanism
  • Interchange Type: True-Flate Automotive standard
  • Temperature Range: -40 to 212°F for operation within the specified temperature range (-40 to 212°F)
  • Color: Black for the visible surface

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
