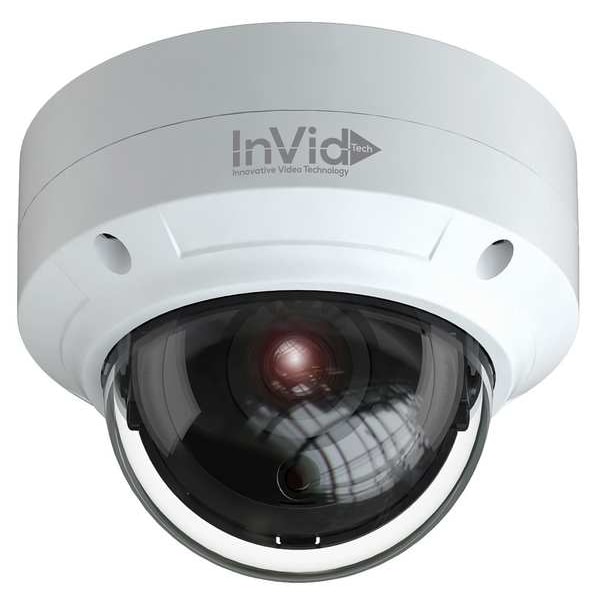

Camera, Dome, 5 MP

  • Mfr # PAR-C5DRIR28

  • Zoro # G501246027


product price: $83.79
/ea
Free Shipping & Returns

Key Features

For Use With
DVRs
Includes
Drill Template, Mounting Hardware, Screws
Camera Design
Dome
Lens
Fixed
Line Resolution
5 MP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAR-C5DRIR28
Zoro #
G501246027
UPC #
-
Country of Origin
China

Dimensions

IR Illuminator Wavelength
850 nm
Overall Height
3 1/4 in
Height (In.)
3 1/4 in
Depth (In.)
4 11/16 in
Length (In.)
4 11/16 in
Width (In.)
4 11/16 in
Dia. (In.)
3 1/4 in
Focal Length (mm)
2.8 mm
Overall Diameter
3 1/4 in
Maximum Focal Length
2.8 mm

Details

For Use With
DVRs
Item
Camera
Includes
Drill Template, Mounting Hardware, Screws
Camera Design
Dome
Lens
Fixed
Line Resolution
5 MP
Power Consumption
5 W
Display
Color
Indoor/Outdoor
Indoor, Outdoor
Pixels
2592 x 1944
Scanning
Progressive
IP Rating
IP66
Luminance Factor
B/W: 0 lux with IR, Color: 0.01 lux@F1.2, AGC ON
Day/Night Capable
Day/Night
Standards
NDAA Compliant
S/N Ratio
More than 52dB
Min. Light Level (Lux)
Black and White: 0 lux (IR On), Color: 0.01 lux@F1.2, AGC On
Detection Range
0 to 100 ft
Voltage
12V DC
Digital Video Camera Image Sensor
1 / 2.7 CMOS
Power Supply
Not Included
Mount
Ceiling, Wall
Type
Dome
Camera Body Color
White
Exposure Conditions
-22 Degrees to 122 Degrees F
S/N Ratio (dB)
More than 52
Features
UTC Function
Illumination
1 Array LED (28mil)
Construction
Metal Alloy
Lens Type
Fixed
Body Color
White
Maximum Operating Temperature
122 Degrees F
Indoor/Outdoor Usage
Indoor, Outdoor
Night Capable
Day and Night
Minimum Light Level
0 lux
Input Type
No Inputs Included
Minimum Operating Temperature
-30 Degrees F
Includes Power Supply
Yes
Color Display
Black and White, Color
Maximum Detection Distance
65 ft
Output Type
AHD, CVBS, CVI, TVI
Resolution
5MP
Image Sensor
1/2.7 CMOS
Operating Voltage
12V DC

Description

Camera, Body Color White, Maximum Focal Length 2.8 mm, Camera Design Dome, Mounting Location Ceiling, Wall, Color Display Black and White, Color, Maximum Detection Distance 65 ft, Features UTC Function, Lens Type Fixed, Resolution 5MP, For Use With DVRs, Image Sensor 1/2.7 CMOS, Includes Drill Template, Mounting Hardware, Screws, Pixels 2592 x 1944, Indoor/Outdoor Usage Indoor, Outdoor, Input Type No Inputs Included, IP Rating IP66, IR Illuminator Wavelength 850 nm
