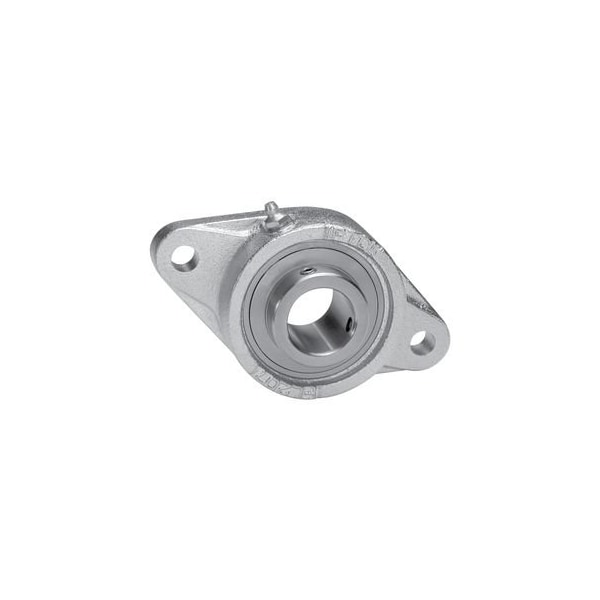

2-Bolt Flange Ball Bearing Mounted Unit

  • Mfr # CUCNPFL208-24
  • Zoro # G023389349
product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Bore Diameter
1-1/2 in
Overall Width
51 mm
Temp. Range
250 Degrees F Max
Series
CUCNPFL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CUCNPFL208-24
Zoro #
G023389349
UPC #
080067573875
Country of Origin
China
Shaft Locking Type
Set Screw
Temp. Range
250 Degrees F Max
Series
CUCNPFL
Closure
Double Sealed
Finish
Nickel Plated
Lubricant Material
H-1 Food Grade Grease
Number of Mount Holes
2
System of Measurement
Inch
Bearing Insert Type
Radial Ball
Item
2 Bolt Flange Bearing
Self Lubricating Bearing
No
Dynamic Load Capacity
6,375 lbf
Static Radial Load Capacity
3,960 lbf
Bearing Lubrication
Relubricateable
Bore Type
Cylindrical
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
For Environment
Food and Beverage
Includes Bearing Cap
Bearing Cap Not Included
Included Bearing
CUC208-24
Load Direction
Radial
Maximum Temperature
250 Degrees F
Housing Type
Rhombus
Maximum Speed
3,750 RPM Grease
Standards
AFBMA
Expansion Type
Fixed
Minimum Temperature
-10 Degrees F
Split Housing
Not Split
Seal Type
B-Type
Resistance Properties
Corrosion-Resistant
Lubrication Openings
Grease Fitting
Bearing Insert Material
Alloy Steel
Internal Clearance
CN
Number of Rows
1
Features
Hard Chrome-Coated Bearing Insert, Standard Duty

Description

Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Type Rhombus, Included Bearing CUC208-24, Lubricant Material H-1 Food Grade Grease, Maximum Speed 3,750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F, Mount Hole Center-to-Center Height Not Applicable
