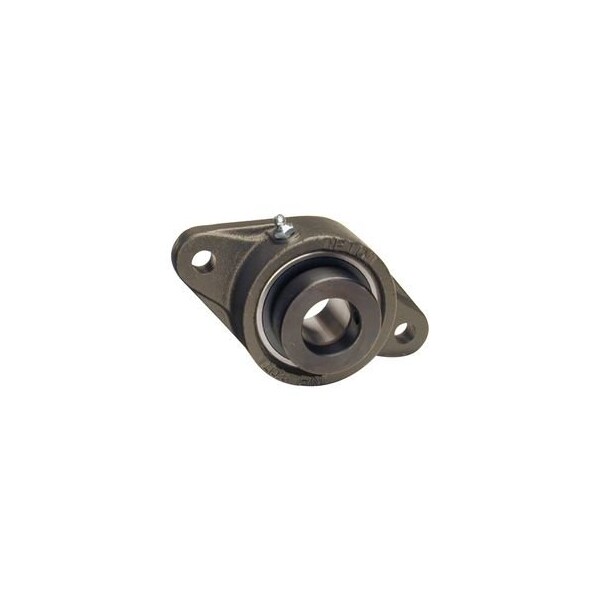

2-Bolt Flange Ball Bearing Mounted Unit
Mfr # NANFL204-12
Zoro # G623390295
product price:Â
$
40.45
/ea
Key Features
Shaft Locking Type
Eccentric Collar
Housing Material
Cast Iron
Bore Diameter
3/4 in
Overall Width
45 mm
Lubricant Material
NLGI #2 Equivalent
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NANFL204-12
- Zoro #
- G623390295
- UPC #
- 080067561227
- Country of Origin
- China
Dimensions
- Bore Diameter
- 3/4 in
- Overall Width
- 45 mm
- Bolt Circle Diameter
- 10 mm
- Overall Length
- 113 mm
- Inner Ring Width
- 1.712 in
- Mounting Bolt Size
- 5/16, M8
- Overall Height
- 60 mm
- Flange Thickness
- 11 mm
- Mount Hole Center-to-Center Length
- 4 7/16 in
- Length
- 113 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing NA204-12, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
