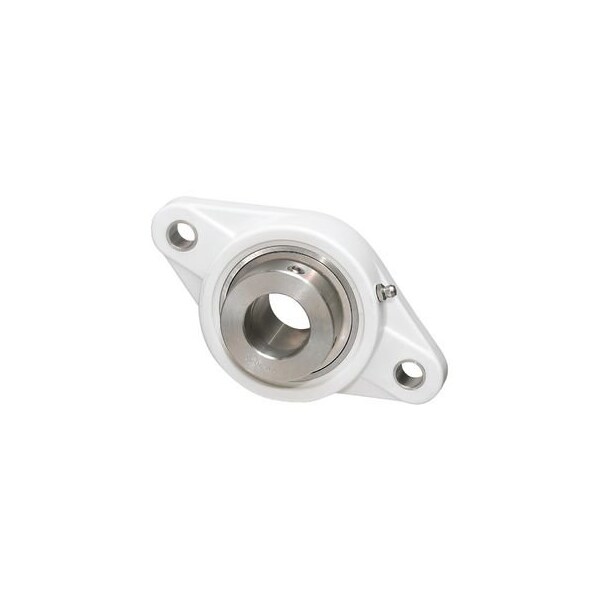

2-Bolt Flange Ball Bearing Mounted Unit

  • Mfr # SNATFL206-20

  • Zoro # G923389470

product price:
$
213.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Eccentric Collar
Housing Material
Thermoplastic
Bore Diameter
1-1/4 in
Overall Width
49 mm
Closure
Double Sealed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SNATFL206-20
Zoro #
G923389470
UPC #
080067573572
Country of Origin
China
Shaft Locking Type
Eccentric Collar
Housing Material
Thermoplastic
Closure
Double Sealed
Series
SNATFL
Lubricant Material
H-1 Food Grade Grease
Temp. Range
250 Degrees F Max
Item
2 Bolt Flange Bearing
Number of Mount Holes
2
System of Measurement
Inch
Bearing Insert Type
Radial Ball
Features
Standard Duty
Maximum Temperature
250 Degrees F
Dynamic Load Capacity
3,710 lbf
Resistance Properties
Corrosion-Resistant
Bore Type
Cylindrical
Static Radial Load Capacity
2,020 lbf
Expansion Type
Fixed
Number of Rows
1
Included Bearing
SNA206-20
Includes Bearing Cap
Bearing Cap Not Included
Load Direction
Radial
Internal Clearance
CN
Bearing Lubrication
Relubricateable
Seal Type
B-Type
Standards
AFBMA
Split Housing
Not Split
For Environment
Food and Beverage
Minimum Temperature
-10 Degrees F
Self Lubricating Bearing
No
Maximum Speed
5,000 RPM Grease
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
Bearing Insert Material
Stainless Steel
Lubrication Openings
Grease Fitting
Housing Type
Rhombus

Description

Flange Mount Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Rhombus, Included Bearing SNA206-20, Lubricant Material H-1 Food Grade Grease, Maximum Speed 5,000 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F
