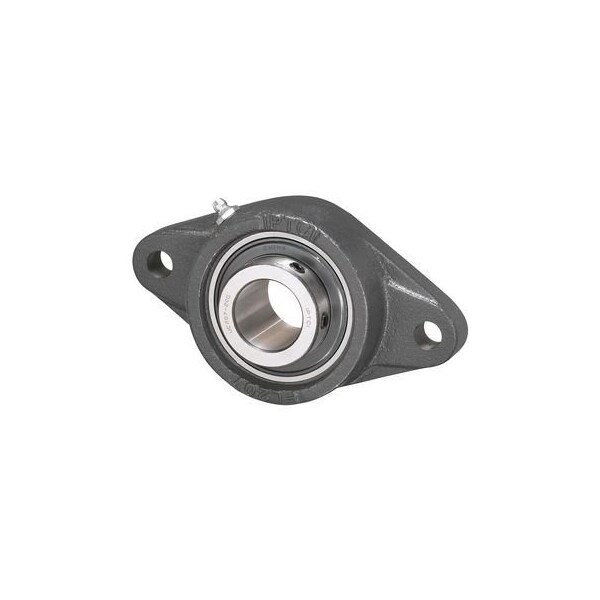

2-Bolt Flange Ball Bearing Mounted Unit
Mfr # UCFLX10-32
Zoro # G223388456
product price:Â
$
123.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bore Diameter
2 in
Overall Width
59 mm
Closure
Double Sealed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UCFLX10-32
- Zoro #
- G223388456
- UPC #
- 080067571819
- Country of Origin
- China
Dimensions
- Bore Diameter
- 2 in
- Overall Width
- 59 mm
- Mounting Bolt Size
- 9/16, M14
- Overall Length
- 224 mm
- Bolt Circle Diameter
- 19 mm
- Inner Ring Width
- 2.189 in
- Flange Thickness
- 18 mm
- Mount Hole Center-to-Center Length
- 184 mm
- Overall Height
- 130 mm
- Length
- 224 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC211-32, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,000 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
