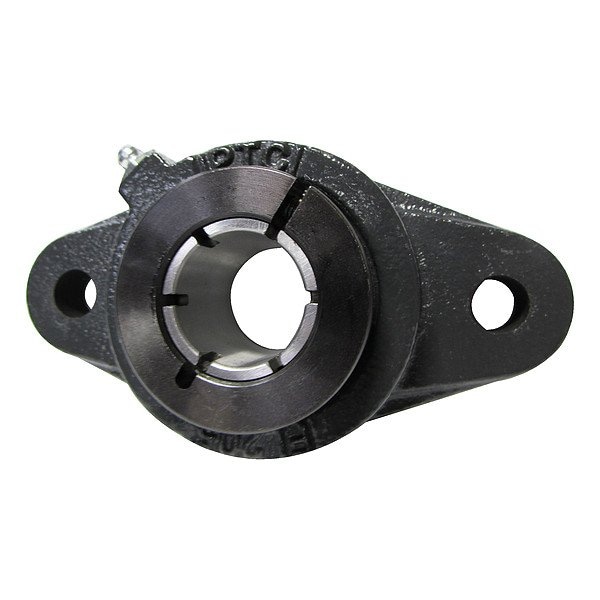

2 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-1/2 in Dia, Cast Iron, Concentric Locking Collar
Mfr # CLFL208-24
Zoro # G515627898
product price:Â
$
144.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Concentric Locking Collar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CLFL208-24
- Zoro #
- G515627898
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 1-1/2 in
- Mount Hole Center-to-Center Length
- 5-21/32 in
- Overall Length
- 6-7/8 in
- Overall Width
- 2-5/64 in
- Overall Height
- 3-15/16 in
- Flange Thickness
- 9/16 in
- Center Height
- 1-15/16 in
- Mount Hole Size
- 33/64 in
- Mounting Bolt Size
- 1/2, M14
- Bore Diameter Tolerance
- -0.0005 in
- Back Side to Center Width
- 0.828 in
- Mount Hole Center-to-Center Height
- 5 21/32 in
- Wire Rope Length
- 6 7/8 in
- Inner Ring Width
- 2 in
- Bolt Circle Diameter
- 16 mm
- Length
- 6 7/8 in
Description
Flange Mount Bearing, Back Side to Center Width 0.828 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height 1 15/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Ball, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,750 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 5 21/32 in
