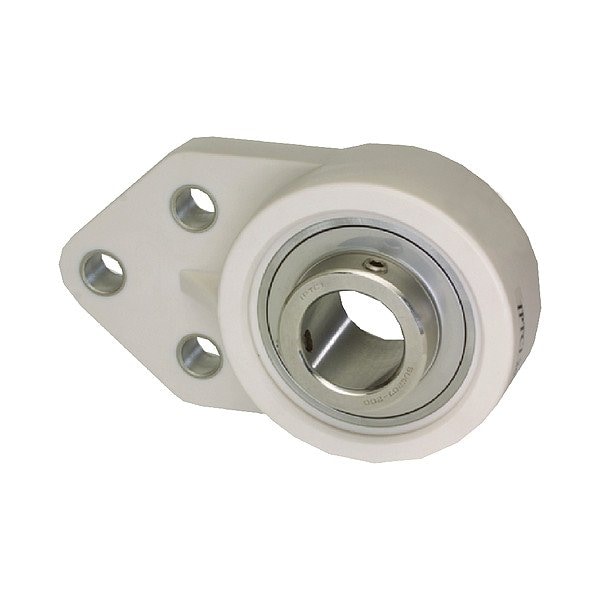

3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 20 mm Dia, PBT Plastic, Set Screw
Mfr # SUCTFB204-20MM IP69K
Zoro # G215628188
product price:Â
$
184.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Flange Bracket
Number of Mount Holes
3
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCTFB204-20MM IP69K
- Zoro #
- G215628188
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 20 mm
- Mount Hole Center-to-Center Length
- 38.1 mm
- Overall Length
- 64 mm
- Overall Width
- 33.3 mm
- Overall Height
- 108 mm
- Flange Thickness
- 11 mm
- Center Height
- 31 mm
- Mount Hole Size
- 9.9 mm
- Mount Hole Center-to-Center Height
- 38.1 mm
- Mounting Bolt Size
- 5/16, M8
- Back Side to Center Width
- 12.7 mm
- Inner Ring Width
- 31 mm
- Wire Rope Length
- 64 mm
- Bolt Circle Diameter
- 9.9 mm
- Length
- 64 mm
Description
Flange Mount Bearing, Back Side to Center Width 12.7 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Center Height 31 mm, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Triangular, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 650 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -10 Degrees F
