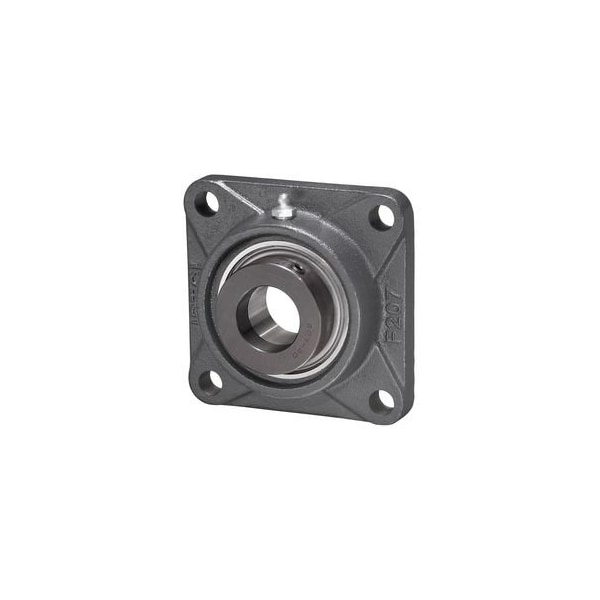

4-Bolt Flange Ball Bearing Mounted Unit
Mfr # SAF204-12G
Zoro # G623389862
product price:Â
$
37.69
/ea
Key Features
Shaft Locking Type
Eccentric Collar
Housing Material
Cast Iron
Bore Diameter
3/4 in
Overall Width
39 mm
Lubricant Material
NLGI #2 Equivalent
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SAF204-12G
- Zoro #
- G623389862
- UPC #
- 080067574841
- Country of Origin
- China
Dimensions
- Bore Diameter
- 3/4 in
- Overall Width
- 39 mm
- Overall Length
- 86 mm
- Mounting Bolt Size
- 3/8, M10
- Overall Height
- 86 mm
- Flange Thickness
- 12 mm
- Inner Ring Width
- 1.22 in
- Mount Hole Center-to-Center Length
- 64 mm
- Bolt Circle Diameter
- 12 mm
- Length
- 86 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing SA204-12G, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
