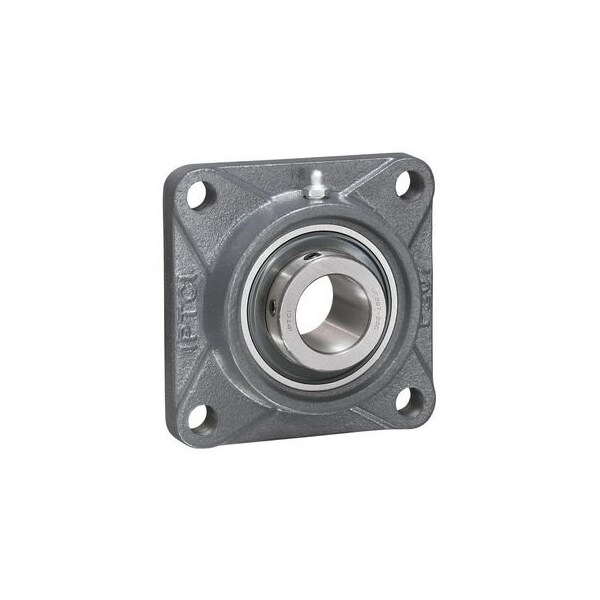

4-Bolt Flange Ball Bearing Mounted Unit
Mfr # UCFX12-60MM
Zoro # G323388806
product price:Â
$
252.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bore Diameter
60 mm
Overall Width
74 mm
Series
UCFX
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UCFX12-60MM
- Zoro #
- G323388806
- UPC #
- 080067575195
- Country of Origin
- China
Dimensions
- Bore Diameter
- 60 mm
- Overall Width
- 74 mm
- Overall Length
- 187 mm
- Mount Hole Center-to-Center Length
- 149 mm
- Flange Thickness
- 22 mm
- Overall Height
- 187 mm
- Inner Ring Width
- 65.1 mm
- Mounting Bolt Size
- 9/16, M14
- Bolt Circle Diameter
- 17 mm
- Length
- 187 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 60 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UCX12-60MM, Lubricant Material NLGI #2 Equivalent, Maximum Speed 2,350 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
