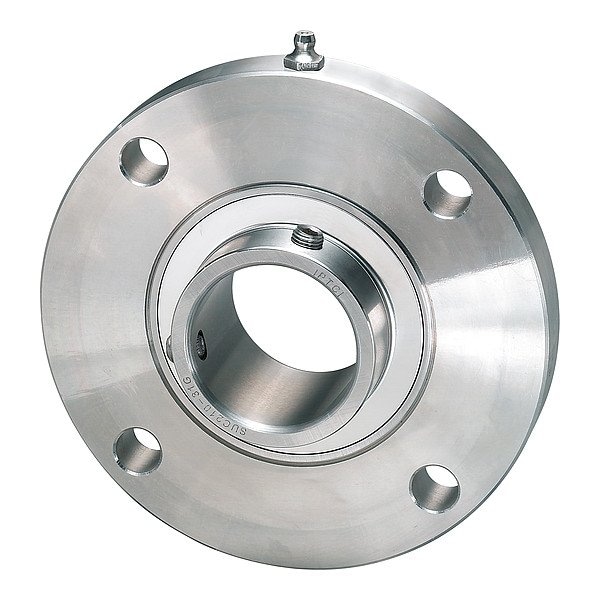

4 Holes, Circular Housing, 4 Bolt Flange Bearing, Radial Ball, 1-15/16 in Dia, Stainless Steel, Set Screw
Mfr # SUCSFCS210-31 IP69K
Zoro # G115628226
product price:Â
$
917.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Circular
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCSFCS210-31 IP69K
- Zoro #
- G115628226
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 1-15/16 in
- Mount Hole Center-to-Center Length
- 5-7/64 in
- Overall Length
- 6-3/32 in
- Overall Width
- 6-3/32 in
- Overall Height
- 2-3/64 in
- Flange Thickness
- 25/32 in
- Center Height
- 3-1/32 in
- Back Side to Center Width
- 1.283 in
- Inner Ring Width
- 2.031 in
- Mounting Bolt Size
- 7/16, M12
- Bolt Circle Diameter
- 5.125 in
- Mount Hole Center-to-Center Height
- 5 7/64 in
- Bore Diameter Tolerance
- -0.0005 in
- Mount Hole Size
- 35/64 in
- Wire Rope Length
- 6 3/32 in
- Overall Diameter
- 155 mm
- Pilot Diameter
- 108 mm
- Length
- 6 3/32 in
Description
Flange Mount Bearing, Back Side to Center Width 1.283 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 15/16 in, Bore Type Cylindrical, Center Height 3 1/32 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Stainless Steel, Housing Type Circular, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 295 RPM, Maximum Temperature 210 Degrees F
