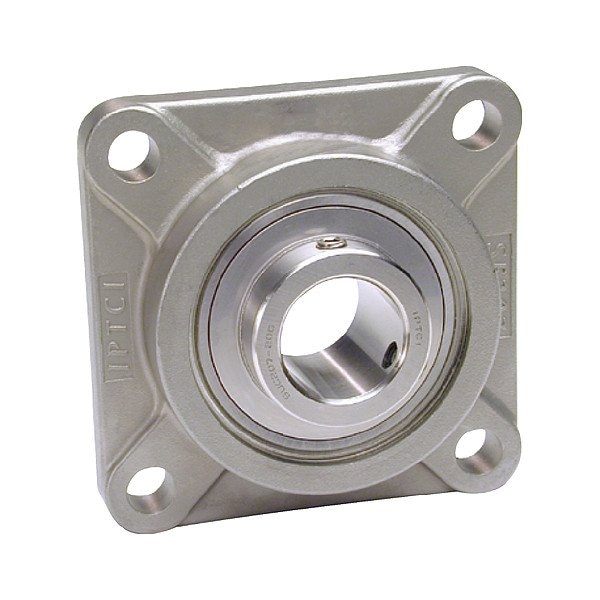

4 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw
- Mfr # SUCSF208-24 IP69K
- Zoro # G515628475
product price:Â
$
537.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Dimensions
- Bore Diameter
- 1-1/2 in
- Mount Hole Center-to-Center Length
- 4 in
- Overall Length
- 5-1/8 in
- Overall Width
- 2-1/32 in
- Overall Height
- 5-1/8 in
- Flange Thickness
- 19/32 in
- Center Height
- 2-35/64 in
- Mount Hole Center-to-Center Height
- 4 1/64 in
- Back Side to Center Width
- 0.748 in
- Bore Diameter Tolerance
- -0.0005 in
- Mounting Bolt Size
- 1/2, M14
- Inner Ring Width
- 1.937 in
- Mount Hole Size
- 35/64 in
- Wire Rope Length
- 5 1/8 in
- Bolt Circle Diameter
- 14 mm
- Length
- 5 1/8 in
- Fits Chest Size
- IP69K Seals, Standard Duty
Description
Flange Mount Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height 2 35/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Stainless Steel, Housing Type Square, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 335 RPM, Maximum Temperature 210 Degrees F
