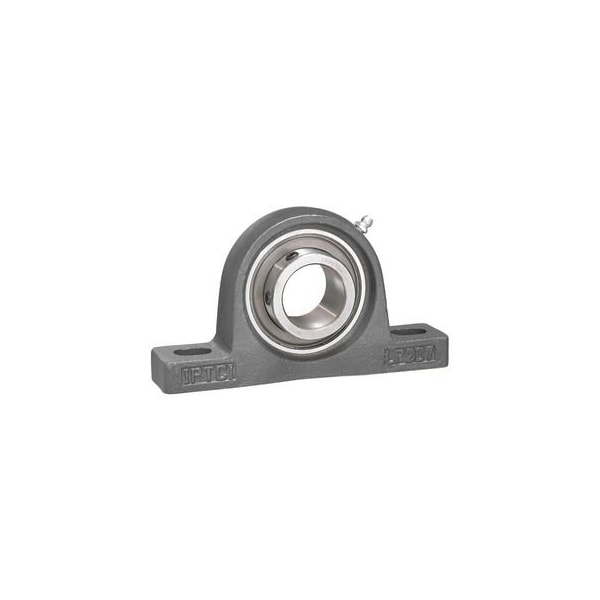

Pillow Block Ball Bearing Mounted Unit, Cast Iron Housing Material, 20 mm Dia
- Mfr # SBLP204-20MM
- Zoro # G423387792
product price:Â
$
35.99
/ea
Key Features
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
AISI 52100
Bore Diameter
20 mm
Closure
Double Sealed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SBLP204-20MM
- Zoro #
- G423387792
- UPC #
- 080067570657
- Country of Origin
- China
- Item
- Pillow Block Ball Bearing Mounted Unit
- Shaft Locking Type
- Set Screw
- Housing Material
- Cast Iron
- Bearing Material
- AISI 52100
- Closure
- Double Sealed
- Mount Type
- Compact
- Features
- Light Duty; Relubricatable
- Standards
- AFBMA
- Lubricant Material
- NLGI #2 Equivalent
- Maximum Temperature
- 248 Degrees F
- Bearing Insert Material
- Alloy Steel
- Series
- SALP
- Maximum Speed
- 6,500 RPM Grease
- Split Housing
- Not Split
- System of Measurement
- Metric
- Bearing Lubrication
- Relubricateable
- Internal Clearance
- C3
- Includes
- (2) Set Screws
- Included Bearing
- SB204-20MMG
- Number of Mount Holes
- 2
- Minimum Temperature
- -4 Degrees F
- Expansion Type
- Fixed
Dimensions
- Bore Diameter
- 20 mm
- Overall Width
- 27 mm
- Inner Ring Width
- 0.984 in
- Mounting Bolt Size
- M10
- Overall Length
- 125 mm
- Mount Hole Center-to-Center Length
- 97 mm
- Center Height
- 1 5/16 in
- Overall Height
- 65 mm
- Length
- 125 mm
Description
Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Ball, Bore Diameter 20 mm, Center Height 1 5/16 in, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing SB204-20MMG, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 97 mm, Number of Mount Holes 2, Overall Height 65 mm, Overall Length 125 mm, Overall Width 27 mm
