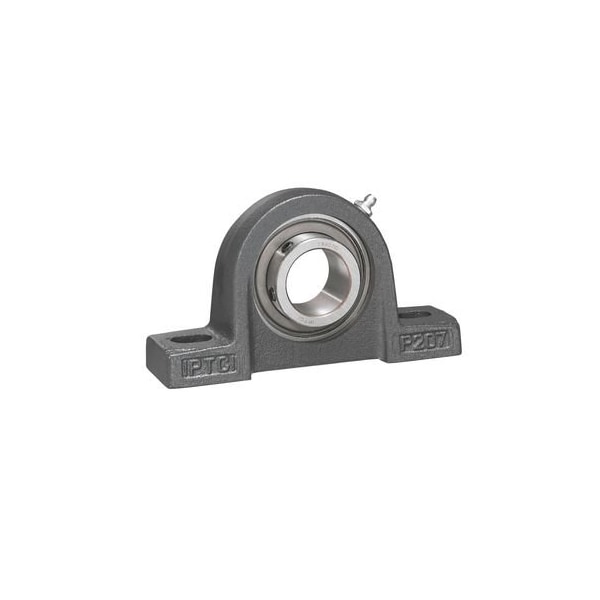

Pillow Block Ball Bearing Mounted Unit
Mfr # SBP206-19G
Zoro # G323389285
product price:Â
$
49.59
/ea
Key Features
Overall Height
84 mm
Split Housing
Not Split
Overall Width
44 mm
Minimum Temperature
-4 Degrees F
Dynamic Radial Load Capacity
4,200 lbf
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SBP206-19G
- Zoro #
- G323389285
- UPC #
- 080067574926
- Country of Origin
- China
- Item
- Pillow Block Ball Bearing Mounted Unit
- Split Housing
- Not Split
- Minimum Temperature
- -4 Degrees F
- Dynamic Radial Load Capacity
- 4,200 lbf
- Standards
- AFBMA
- Bearing Material Grade
- AISI 52100
- Series
- SBP
- Includes
- Grease Zerk
- Housing Material
- Cast Iron
- Features
- Narrow Inner Ring Bearing
- Internal Clearance
- C3
- Lubricant Material
- NLGI #2 Equivalent
- Closure
- Double Sealed
- Maximum Temperature
- 248 Degrees F
- Included Bearing
- SB206-19G
- Number of Mount Holes
- 2
- Bearing Insert Material
- Alloy Steel
- Maximum Speed
- 5,000 RPM Grease
- Shaft Locking Type
- Set Screws
- Static Radial Load Capacity
- 2,430 lbf
- Expansion Type
- Fixed
- Lubrication Openings
- Grease Fitting
- Bearing Lubrication
- Relubricateable
Description
Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Ball, Bore Diameter 1 3/16 in, Center Height 1 11/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing SB206-19G, Lubricant Material NLGI #2 Equivalent, Maximum Speed 5,000 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 121 mm, Number of Mount Holes 2, Overall Height 84 mm, Overall Length 160 mm
