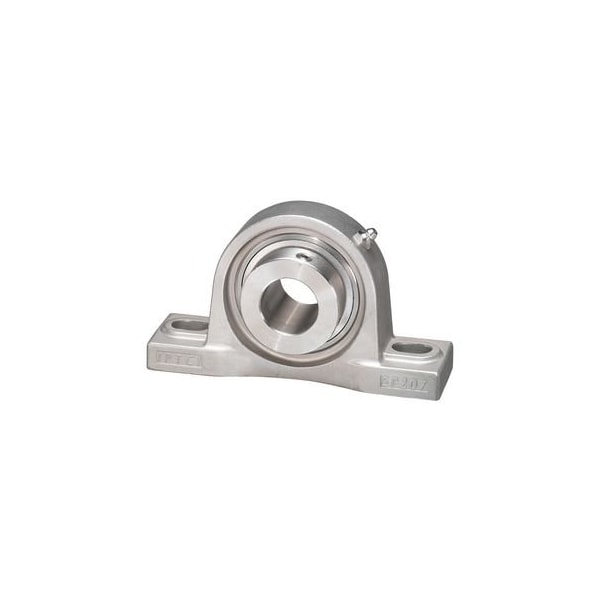

Pillow Block Ball Bearing Mounted Unit
Mfr # SNASP209-28
Zoro # G223389668
product price:Â
$
497.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Stainless Steel
Included Bearing
SNA209-28
Mount Hole Center-to-Center Length
146 mm
Standards
AFBMA
Maximum Speed
3,400 RPM Grease
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SNASP209-28
- Zoro #
- G223389668
- UPC #
- 080067569523
- Country of Origin
- China
- Item
- Pillow Block Ball Bearing Mounted Unit
- Housing Material
- Stainless Steel
- Included Bearing
- SNA209-28
- Standards
- AFBMA
- Maximum Speed
- 3,400 RPM Grease
- Shaft Locking Type
- Eccentric Collar
- Includes
- Grease Zerk
- Lubrication Openings
- Grease Fitting
- Minimum Temperature
- -10 Degrees F
- Bearing Lubrication
- Relubricateable
- Closure
- Double Sealed
- Series
- SNASP
- Maximum Temperature
- 250 Degrees F
- Split Housing
- Not Split
- System of Measurement
- Inch
- Lubricant Material
- H-1 Food Grade Grease
- Expansion Type
- Fixed
- Seal Material
- Silicone Rubber
- Dynamic Radial Load Capacity
- 6,230 lbf
- Bearing Insert Material
- Stainless Steel
- Number of Mount Holes
- 2
- Features
- Wide Inner Ring Bearing
- Static Radial Load Capacity
- 3,680 lbf
Description
Pillow Block Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Ball, Bore Diameter 1 3/4 in, Center Height 2 1/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Included Bearing SNA209-28, Lubricant Material H-1 Food Grade Grease, Maximum Speed 3,400 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F, Mount Hole Center-to-Center Length 146 mm, Number of Mount Holes 2, Overall Height 109 mm, Overall Length 190 mm
