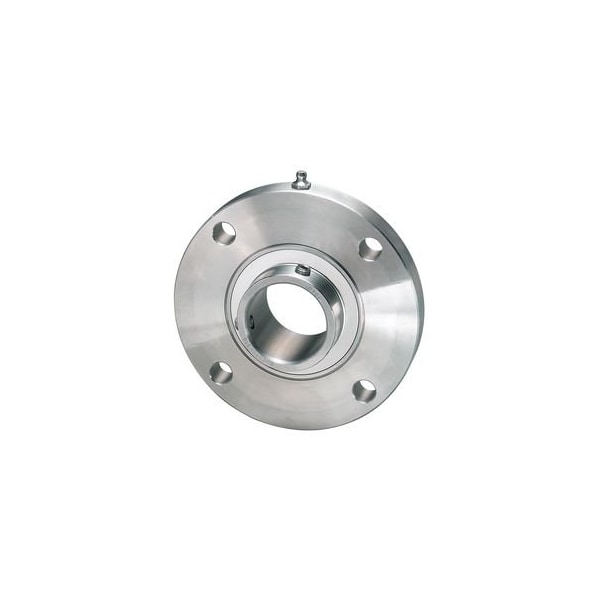

Piloted Flange Ball Bearing Mounted Unit
Mfr # SUCSFCS206-30MM
Zoro # G623390097
product price:Â
$
418.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bore Diameter
30 mm
Overall Width
33 mm
Closure
Double Sealed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCSFCS206-30MM
- Zoro #
- G623390097
- UPC #
- 080067569689
- Country of Origin
- China
Dimensions
- Bore Diameter
- 30 mm
- Overall Width
- 33 mm
- Flange Thickness
- 19.5 mm
- Mounting Bolt Size
- 5/16, M8
- Pilot Diameter
- 76.2 mm
- Bolt Circle Diameter
- 9.5 mm
- Overall Diameter
- 111 mm
- Mount Hole Center-to-Center Length
- 92 mm
- Overall Length
- 111 mm
- Overall Height
- 111 mm
- Inner Ring Width
- 38.1 mm
Description
Flange Mount Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Stainless Steel, Housing Type Circular, Included Bearing SUC206-30MM, Lubricant Material H-1 Food Grade Grease, Maximum Speed 5,000 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F
