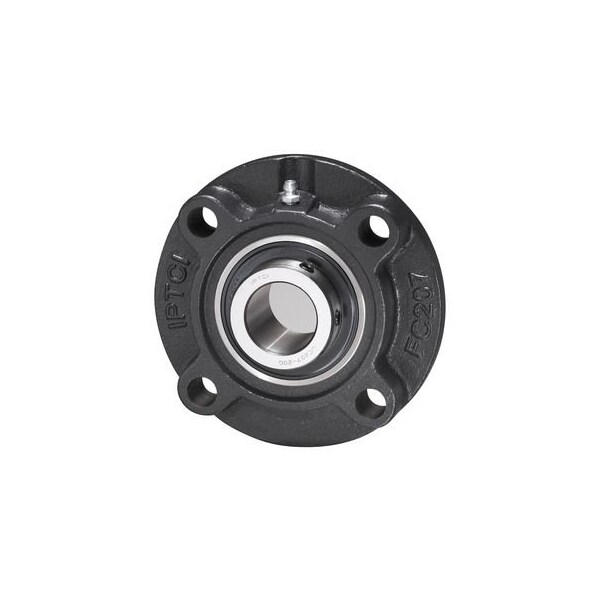

Piloted Flange Ball Bearing Mounted Unit
Mfr # UCFC204-20MM
Zoro # G923389586
product price:Â
$
42.59
/ea
Key Features
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bore Diameter
20 mm
Overall Width
28 mm
Lubricant Material
NLGI #2 Equivalent
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UCFC204-20MM
- Zoro #
- G923389586
- UPC #
- 080067570686
- Country of Origin
- China
Dimensions
- Bore Diameter
- 20 mm
- Overall Width
- 28 mm
- Overall Length
- 100 mm
- Overall Height
- 100 mm
- Overall Diameter
- 100 mm
- Bolt Circle Diameter
- 12 mm
- Pilot Diameter
- 62 mm
- Flange Thickness
- 7 mm
- Inner Ring Width
- 31 mm
- Mount Hole Center-to-Center Length
- 78 mm
- Mounting Bolt Size
- 3/8, M10
- Length
- 100 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing UC204-20MM, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
