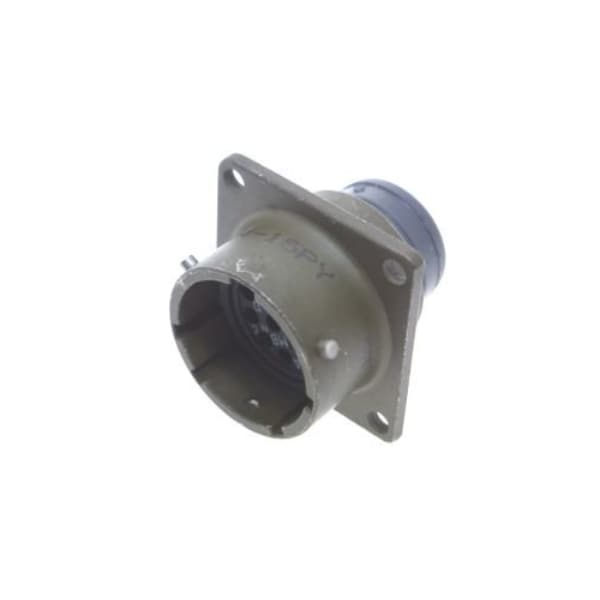

Itt Cannon KPSE 15C 1420 116 PIN RECP KPSE02E1415PY - main

KPSE 15C 1420 116 PIN RECP

  • Mfr # KPSE02E1415PY

  • Zoro # G307569665

product price: $23.99
/ea

Key Features

Insert Arrangement
14-15
Amperage Rating
13A & 22A
Contact Plating
50 microinches Gold Plate on Activated Area
Crimp Wire Gauge
24, 22, 20, 18, 16
Shell Plating
Olive Drab Cadmium
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KPSE02E1415PY
Zoro #
G307569665
UPC #
-
Country of Origin
United States

Dimensions

Contact Size
14#20, 1#16

Details

Insert Arrangement
14-15
Amperage Rating
13A & 22A
Contact Plating
50 microinches Gold Plate on Activated Area
Crimp Wire Gauge
24, 22, 20, 18, 16
Shell Plating
Olive Drab Cadmium
Termination Method
Crimp
No. of Contacts
15
Service Rating
I
Shielding
Yes
Contact Material
Copper Alloy
Contact Mating Life
500
Connector Type
Connector Circular
Insert Rotation/Keying
Y
Operating Voltage DC
850
Insert Material
Neoprene
Contacts Supplied
Yes
Connector Style
Receptacle
Operating Voltage AC V RMS Max
600
Shell Material
Aluminum Alloy
Operating Temperature °F (°C)
-67 to +257 (-55 to +125)
Specification
MIL-DTL-26482 Style
Mounting Type
Box - Front Mount - Thru Holes
Rotation Angle
155
Grommet & Seals Material
Neoprene
Shell Color
Olive Drab
Sealing
IP67
Contact Style
Pin
