Shop ITT CANNON

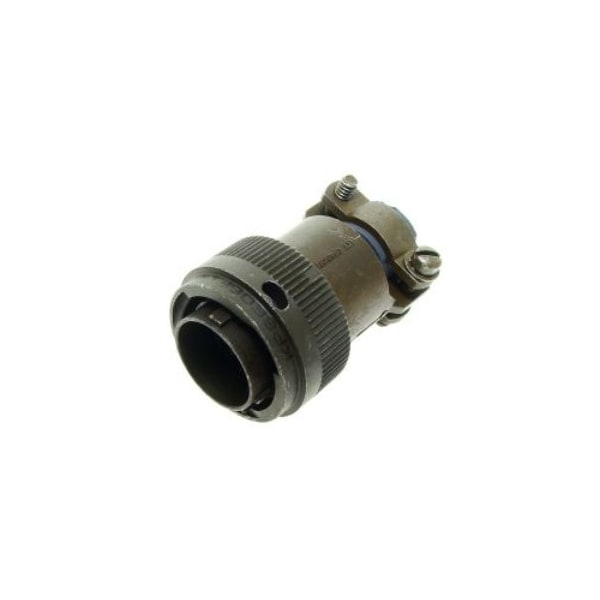

KPSE 19C 1920 PIN PLUG

  • Mfr # KPSE06F1419PX
  • Zoro # G507564224

product price:
$
78.29
/ea

Key Features

Service Rating
I
Contacts Supplied
Yes
Operating Temperature °F (°C)
-67 to +257 (-55 to +125)
Amperage Rating
13A
Contact Material
Copper Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
KPSE06F1419PX
Zoro #
G507564224
UPC #
-
Country of Origin
United States
Service Rating
I
Contacts Supplied
Yes
Operating Temperature °F (°C)
-67 to +257 (-55 to +125)
Amperage Rating
13A
Contact Material
Copper Alloy
Operating Voltage AC V RMS Max
600
Insert Rotation/Keying
X
Insert Arrangement
14-19
Operating Voltage DC
850
Rotation Angle
165
Connector Type
Connector Circular
Endbell Type
Cable Clamp
Shell Plating
Olive Drab Cadmium
Shielding
Yes
Specification
MIL-DTL-26482 Style
Contact Style
Pin
Shell Material
Aluminum Alloy
Crimp Wire Gauge
24, 22, 20
Contact Plating
50 microinches Gold Plate on Activated Area
Termination Method
Crimp
Grommet & Seals Material
Neoprene
Sealing
IP67
Connector Style
Plug
Mounting Type
Cable
Insert Material
Neoprene
No. of Contacts
19
Orientation
Straight
Contact Mating Life
500
Shell Color
Olive Drab

Dimensions

Contact Size
19#20
