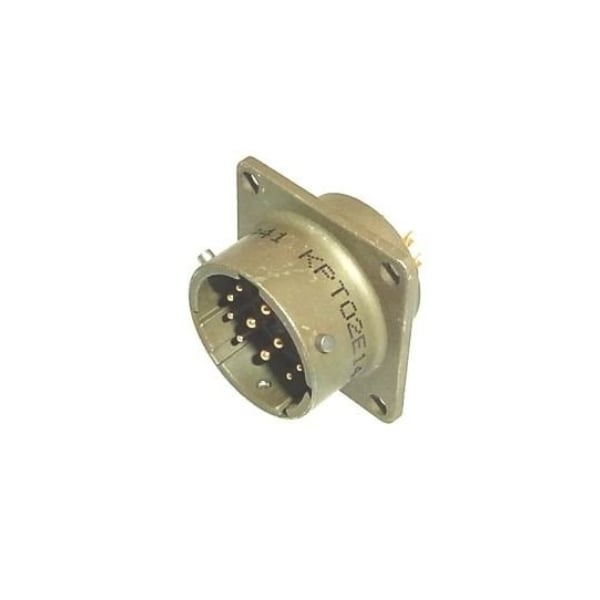

Itt Cannon KPT 12C 820 416 PIN RECP KPT02E1412PX - main

KPT 12C 820 416 PIN RECP

  • Mfr # KPT02E1412PX

  • Zoro # G207572277

product price:  $27.15
/ea

Key Features

Connector Type
Connector Circular
Insert Material
Neoprene
Connector Style
Receptacle
Rotation Angle
90
Specification
MIL-DTL-26482 Style
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KPT02E1412PX
Zoro #
G207572277
UPC #
-
Country of Origin
United States

Dimensions

Contact Size
8#20, 4#16

Details

Connector Type
Connector Circular
Insert Material
Neoprene
Connector Style
Receptacle
Rotation Angle
90
Specification
MIL-DTL-26482 Style
Termination Method
Solder
Insert Rotation/Keying
X
Amperage Rating
13A & 22A
Operating Voltage AC V RMS Max
600
Contact Style
Pin
Contact Plating
50 microinches Gold Plate on Activated Area
Service Rating
I
Contact Mating Life
500
Shell Plating
Olive Drab Cadmium
Orientation
Straight
Grommet & Seals Material
Neoprene
Contact Material
Copper Alloy
Operating Voltage DC
850
Shell Color
Olive Drab
Shell Material
Aluminum Alloy
Insert Arrangement
14-12
No. of Contacts
12
Shielding
Yes
Contacts Supplied
Yes
Mounting Type
Box - Front Mount - Thru Holes
Operating Temperature °F (°C)
-67 to +257 (-55 to +125)
