Shop IVES

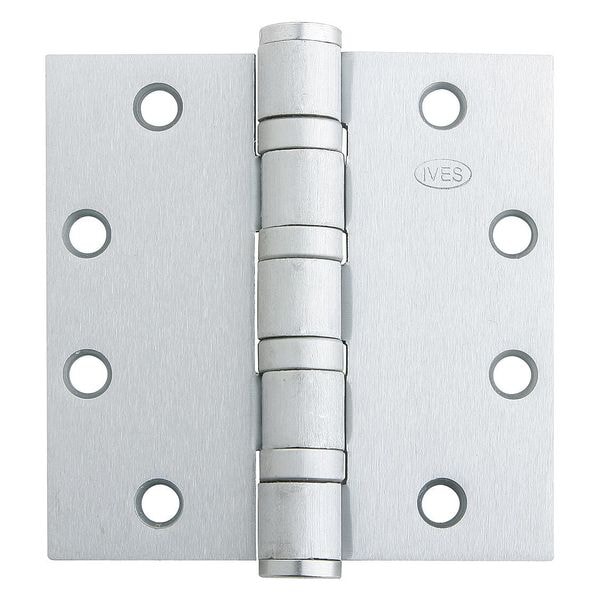

Door and Butt Hinge, Stainless Steel, Full Mortise Mounting, 4 1/2 in Leaf W x 4 1/2 in Leaf H

  • Mfr # 5BB1HW 4.5X4.5 630

  • Zoro # G8518142

product price:
$
71.89
/ea

Key Features

Corners
Square
Door Leaf Height
4 1/2 in
Door Leaf Thickness
0.18 in
Door Leaf Width
4 1/2 in
Finish
Satin Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5BB1HW 4.5X4.5 630
Zoro #
G8518142
UPC #
-
Country of Origin
China
Corners
Square
Finish
Satin Stainless Steel
Holes per Leaf
4
Load Capacity
250 lb
Material
Stainless Steel
Mounting
Full Mortise
Orientation
Non Handed
Range of Motion
110 Degrees
Features
5 Knuckle; 4 Ball Bearing; Heavy Weight
Item
Butt Hinge
Standards
ANSI/BHMA 156.7, ANSI/BHMA A156.1, UL R37965
Pin Material
Steel
Holes
With
Bearing Type
Ball
Number of Wires
0
Pin Type
Removable
Ligature Resistant
No
Hardware
Included
UL Fire Rating
UL10C
Hand Orientation
Left-Handed
ANSI/BHMA Finish
Satin Stainless Steel
Corner Type
Square
Range of Motion - Maximum
180 Degrees
Number of Holes per Leaf
4
Resistance Properties
Corrosion-Resistant
Mounting Style
Full Mortise
Includes Hardware
Hardware Included
Removable Pin
Yes
Fire Rating
3 hr

Description

Butt Hinge, Stainless Steel, Satin Chrome Finish, 250 lb Load Capacity, With Holes, 4 Holes per Leaf, No Ligature Resistant, 110 Degrees Range of Motion, Orientation Non Handed, 4 1/2 in Door Leaf Height, 4 1/2 in Frame Leaf Height, 4 1/2 in Door Leaf Width, 4 1/2 in Frame Leaf Width, 0.18 in Door Leaf Thickness, 0.18 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Ball Bearing Type, Square Corners, Included Hardware
