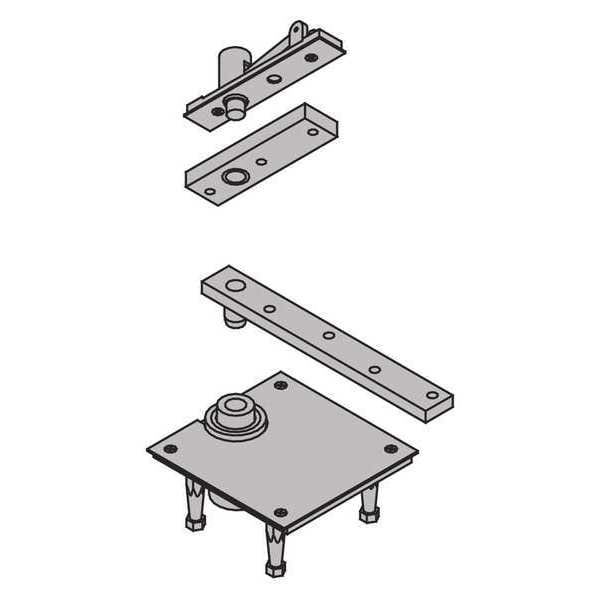

Pivot Hinge, Cast Brass, Center Hung Mounting, 1 1/4 in Leaf W x 1 5/8 in Leaf H
- Mfr # 7256 SET US26D
- Zoro # G3986370
product price:Â
$
539.99
/ea
Free Shipping & Returns
Key Features
Material
Cast Brass
Finish
Satin Chrome Plated
Load Capacity
600 lb
Ligature Resistant
No
Range of Motion
180 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7256 SET US26D
- Zoro #
- G3986370
- UPC #
- -
- Country of Origin
- United States
- Item
- Pivot Hinge
- Material
- Cast Brass
- Finish
- Satin Chrome Plated
- Load Capacity
- 600 lb
- Ligature Resistant
- No
- Range of Motion
- 180 Degrees
- Orientation
- Non Handed
- Mounting
- Center Hung
- Bearing Type
- Sleeve
- Holes per Leaf
- 4
- Features
- Locking
- Hardware
- Included
- Pin Material
- Brass
- Pin Type
- Nonremovable
- Holes
- With
- Standards
- ANSI A156.4
- Corners
- Square
- Includes Holes
- Holes Included
- Number of Holes per Leaf
- 4
- Corner Type
- Square
- Includes Hardware
- Hardware Included
- ANSI/BHMA Finish
- Satin Chromium-Plated
- Mounting Style
- Center Hung
- Range of Motion - Maximum
- 180 Degrees
Description
Pivot Hinge, Cast Brass Material, Satin Chrome Finish, 600 lb Load Capacity, With Holes, 4 Holes per Leaf, No Ligature Resistant, 180 Degrees Range of Motion, Orientation Non Handed, 0.375 in Door Leaf Thickness, 0.375 in Frame Leaf Thickness, 1 3/4 in Required Door Thickness, Sleeve Bearing Type, Square Corners, Included Hardware, Full Mortise Mounting, 1/2 in Pin Dia., Brass Pin Material, Nonremovable Pin Type, ANSI A156.4 Standards, Door Leaf Height 1 5/8 in, Door Leaf Width 1 1/4 in
