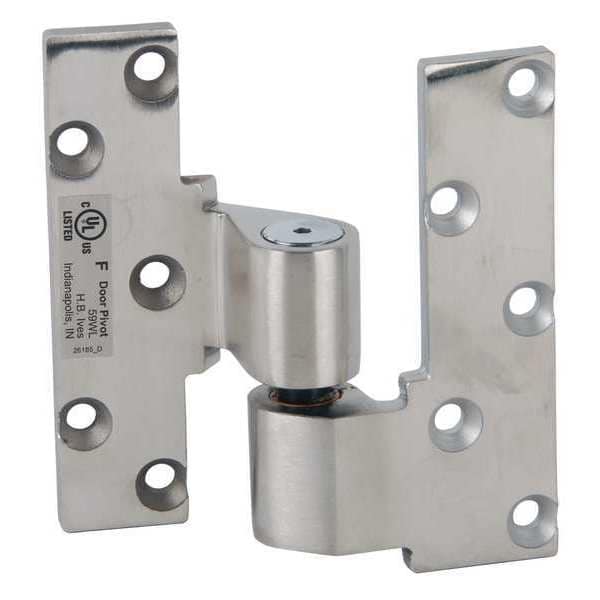

Pivot Hinge, Stainless Steel, Full Mortise Mounting, 1 5/16 in Leaf W x 7 1/4 in Leaf H
Mfr # 7230F INT RH US32D
Zoro # G3986346
product price:Â $372.99
/ea
Free Shipping & Returns
Key Features
Material
Stainless Steel
Finish
Satin Stainless Steel
Load Capacity
1,000 lb
Ligature Resistant
No
Range of Motion
180 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
7230F INT RH US32D
Zoro #
G3986346
UPC #
-
Country of Origin
United States
Dimensions
Frame Leaf Width
1 5/16 in
Frame Leaf Height
7 1/4 in
Frame Leaf Thickness
0.375 in
Door Leaf Width
1 5/16 in
Door Leaf Height
7 1/4 in
Door Leaf Thickness
0.375 in
Pin Dia.
1/2 in
Required Door Thickness
1 3/4 in
Pin Diameter
1/2 in
Description
Pivot Hinge, Stainless Steel Material, Stainless Steel Finish, 1,000 lb Load Capacity, With Holes, 6 Holes per Leaf, No Ligature Resistant, 180 Degrees Range of Motion, Orientation Right Hand, 0.375 in Door Leaf Thickness, 0.375 in Frame Leaf Thickness, 1 3/4 in Required Door Thickness, Lubricated Sleeve Bearing Type, Square Corners, Included Hardware, Full Mortise Mounting, 1/2 in Pin Dia., Steel Pin Material, Nonremovable Pin Type, ANSI A156.4 Standards, Door Leaf Height 7 1/4 in
