  9. Round OEM Blower, 2500 RPM, Direct Drive, Plastic

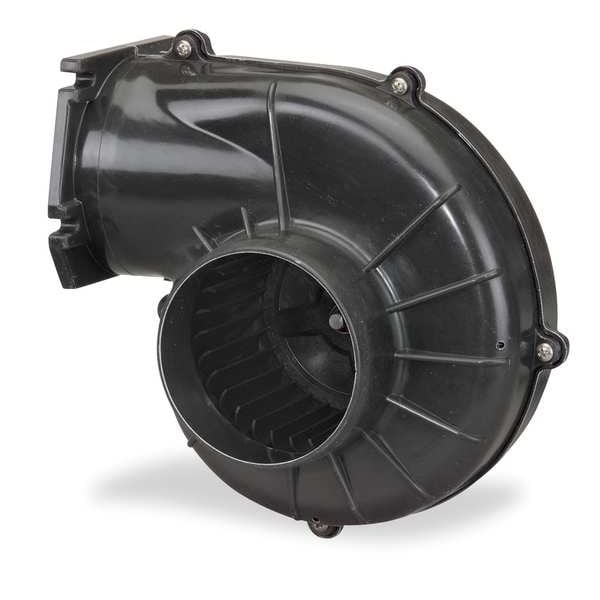

Jabsco Round OEM Blower, 2500 RPM, Direct Drive, Plastic 34739-0020 - main

Round OEM Blower, 2500 RPM, Direct Drive, Plastic

  • Mfr # 34739-0020

  • Zoro # G1915873

product price: $227.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
135
Drive Type
Direct Drive
Full Load Amps
3.30
Housing Material
Plastic
Includes
Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34739-0020
Zoro #
G1915873
UPC #
671880029377
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
200 mm
Overall Width
170 mm
Blower Wheel Diameter
3 1/4 in
Outlet Dia.
3 in
Overall Depth
7 7/8 in
Blower Wheel Width
1 3/4 in
Lead Length
15 in
Wheel Diameter
3 1/4 in
Inlet Diameter
3 in
Wheel Width
1 3/4 in
Outlet Diameter
3 in

Details

CFM @ 0.100-In. SP
135
Drive Type
Direct Drive
Full Load Amps
3.30
Housing Material
Plastic
Includes
Mounting Flange
Blower Item
Plastic Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Wound Field DC
Blower Voltage
24V DC
Blower Thermal Protection
No Thermal Protection
Blower Conduit Box
No
Wheel Type
Forward-Curved
Motor Insulation
Class A
CFM @ 0.700-In. SP
114
CFM @ 0.300-In. SP
130
CFM @ 0.800-In. SP
110
CFM @ 0.400-In. SP
125
CFM @ 1.200-In. SP
80 cfm
Housing Finish
Black
CFM @ 0.600-In. SP
117
Housing Color
Black
CFM @ 1.000-In. SP
90 cfm
Max. Inlet Temp.
130 Degrees F
CFM @ 2.000-In. SP
20
CFM @ 0.000-In. SP
150
CFM @ 0.150-In. SP
133 cfm
CFM @ 0.500-In. SP
120
RPM
2500
Mounting Position
Multi Positional
CFM @ 0.200-In. SP
131
Motor Enclosure
Totally Enclosed
Bearing Type
Sleeve
Item
OEM Blower
CFM @ 1.600-In. SP
55 cfm
CFM @ 0.900-In. SP
100 cfm
Agency Compliance
ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
Max. Ambient Temp.
130 Degrees F
Motor Duty Class
Intermittent
Maximum Ambient Temperature
130 Degrees F
Thermal Overload Protection
No
Maximum Fan Speed
2,500 RPM
Motor Type
Wound Field DC
Motor Speed
2,500 RPM
Includes Drive Package
Yes
Electrical Connection
Wire Leads
Corrosion Resistant
Yes
Nameplate Voltage
24V DC
Standards
ISO 8846, ISO 9097, NMMA
Resistance Properties
Corrosion Resistant
Mount Type
Flange, Multiposition
Features
Outlet Flange Mounts Directly on Bulkhead, Quiet Running
Includes Motor
Yes
Airflow @ 0.000 in SP
150 cfm
Application
Engine Room Fuel Compartment, Galley or Heads
Flange Type
Flanged
Motor Insulation Class
A
Number of Inlets
1
Current
3.3 A
Housing Material Finish
Black
Outlet Shape
Round
Wheel Material
Plastic
Assembly
Assembled
Maximum Inlet Air Temperature
130 Degrees F
OEM Replacement
No
Voltage
24VDC
Mounting
Multi Positional
Type
Flange Mount

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 150 cfm
