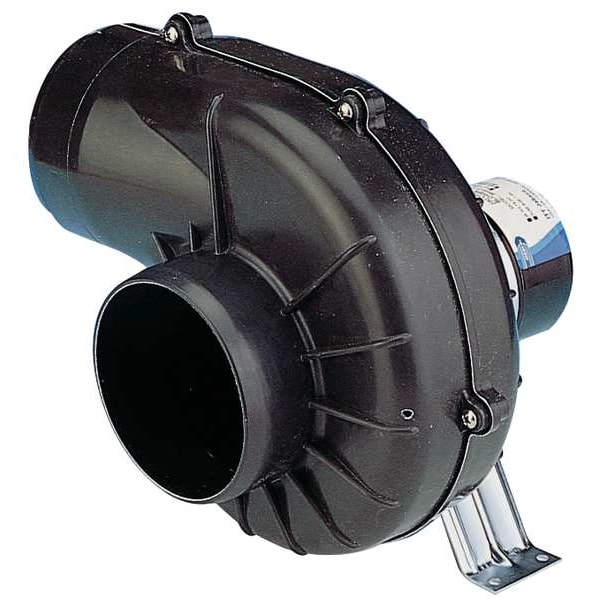

Jabsco Round OEM Blower, 2500 RPM, Direct Drive, Plastic 36740-0010 - main

Round OEM Blower, 2500 RPM, Direct Drive, Plastic

  • Mfr # 36740-0010

  • Zoro # G1217413

product price: $233.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
135
Drive Type
Direct Drive
Full Load Amps
3.30
Housing Material
Plastic
Includes
Mounting Bracket
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36740-0010
Zoro #
G1217413
UPC #
671880031998
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
230 mm
Overall Width
220 mm
Blower Wheel Diameter
3 1/4 in
Lead Length
15 in
Outlet Dia.
3 in
Overall Depth
7 7/8 in
Blower Wheel Width
1 3/4 in
Inlet Diameter
3 in
Wheel Width
1 3/4 in
Wheel Diameter
3 1/4 in
Outlet Diameter
3 in

Details

CFM @ 0.100-In. SP
135
Drive Type
Direct Drive
Full Load Amps
3.30
Housing Material
Plastic
Includes
Mounting Bracket
Blower Item
Plastic Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Wound Field DC
Blower Voltage
24V DC
Blower Thermal Protection
No Thermal Protection
Blower Conduit Box
No
Mounting Position
Multi Positional
RPM
2500
CFM @ 0.700-In. SP
114
Motor Enclosure
Totally Enclosed
CFM @ 0.800-In. SP
110
Housing Color
Black
CFM @ 0.400-In. SP
125
Agency Compliance
ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
CFM @ 0.200-In. SP
131
Wheel Type
Forward-Curved
Housing Finish
Black
Max. Inlet Temp.
130 Degrees F
CFM @ 0.000-In. SP
150
CFM @ 1.600-In. SP
55 cfm
CFM @ 1.200-In. SP
80 cfm
Bearing Type
Sleeve
CFM @ 0.300-In. SP
130
CFM @ 0.600-In. SP
117
CFM @ 0.500-In. SP
120
CFM @ 0.900-In. SP
100 cfm
Motor Insulation
Class A
CFM @ 2.000-In. SP
20
CFM @ 0.150-In. SP
133 cfm
CFM @ 1.000-In. SP
90 cfm
Max. Ambient Temp.
130 Degrees F
Item
OEM Blower
Corrosion Resistant
Yes
Assembly
Assembled
Wheel Material
Plastic
Electrical Connection
Wire Leads
Resistance Properties
Corrosion Resistant
Features
Outlet Flange Mounts Directly on Bulkhead, Quiet Running
Maximum Ambient Temperature
130 Degrees F
Includes Mounting Hardware
Yes
Current
3.3 A
Nameplate Voltage
24V DC
Thermal Overload Protection
No
Flange Type
Non-Flanged
Number of Inlets
1
Application
Engine Room Fuel Compartment, Galley or Heads
Motor Insulation Class
A
Standards
ISO 8846, ISO 9097, NMMA
Includes Drive Package
Yes
Outlet Shape
Round
Airflow @ 0.000 in SP
150 cfm
Maximum Fan Speed
2,500 RPM
Includes Motor
Yes
Motor Speed
2,500 RPM
Maximum Inlet Air Temperature
130 Degrees F
Housing Material Finish
Black
Motor Type
Wound Field DC
Mount Type
Flex, Multiposition
Motor Duty Class
Intermittent
OEM Replacement
No
Type
Flex Mount
Mounting
Multi Positional
Voltage
24VDC

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 150 cfm
