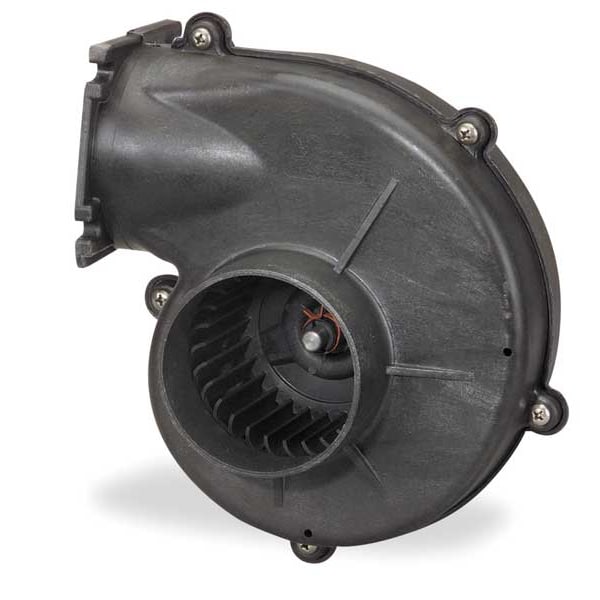

Jabsco Round OEM Blower, 4450 RPM, 1 Phase, Direct Drive, Plastic 34739-7010 - main

Round OEM Blower, 4450 RPM, 1 Phase, Direct Drive, Plastic

  • Mfr # 34739-7010

  • Zoro # G1128705

product price: $151.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Full Load Amps
6.50
Housing Material
Plastic
Inlet Dia.
3 in
Overall Height
7 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34739-7010
Zoro #
G1128705
UPC #
094701394810
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
7 5/8 in
Overall Width
8 in
Blower Wheel Diameter
3 1/4 in
Lead Length
13 in
Overall Depth
6 5/8 in
Blower Wheel Width
1 15/16 in
Outlet Dia.
2 3/4 in
Wheel Diameter
3 1/4 in
Inlet Diameter
3 in
Wheel Width
1 15/16 in
Outlet Diameter
2 3/4 in

Details

Drive Type
Direct Drive
Full Load Amps
6.50
Housing Material
Plastic
Phase
1
Blower Item
Plastic Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
DC
Blower Voltage
12V DC
Blower Thermal Protection
No Thermal Protection
Blower Conduit Box
No
Max. Ambient Temp.
130 Degrees F
Hz
60
CFM @ 0.200-In. SP
137
Mounting Position
Shaft Horizontal
Max. Inlet Temp.
104 Degrees F
CFM @ 1.200-In. SP
97 cfm
CFM @ 0.400-In. SP
131
Agency Compliance
ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
RPM
4450
CFM @ 1.000-In. SP
108 cfm
CFM @ 1.600-In. SP
72 cfm
Item
OEM Blower
Bearing Type
Sleeve
CFM @ 2.000-In. SP
44
Motor Enclosure
Open Dripproof
CFM @ 0.000-In. SP
150
CFM @ 0.800-In. SP
117
CFM @ 0.600-In. SP
125
Wheel Type
Forward-Curved
Motor Duty Class
Intermittent
Includes Drive Package
Yes
Flange Type
Flanged
Thermal Overload Protection
No
Motor Speed
4,450 RPM
Wheel Material
Plastic
Airflow @ 2.000 in SP
44 cfm
Assembly
Assembled
Airflow @ 0.400 in SP
131 cfm
Maximum Fan Speed
4,450 RPM
Airflow @ 1.000 in SP
108 cfm
Electrical Connection
Wire Leads
Mounting Orientation
Horizontal
Frequency
60 Hz
Airflow @ 0.000 in SP
150 cfm
Application
Emergency Backup Ventilation Portable Equipment, Marine, Motor, Recreational Vehicles
Includes Motor
Yes
Standards
ISO 8846, ISO 9097, NMMA
Corrosion Resistant
Yes
Current
6.5 A
Maximum Inlet Air Temperature
104 Degrees F
Resistance Properties
Corrosion Resistant
Features
Low Current Draw, and Slip-On Inlet Ducting Connection
Outlet Shape
Round
Number of Inlets
1
Nameplate Voltage
12V DC
Maximum Ambient Temperature
130 Degrees F
OEM Replacement
No
Type
Flange Mount
Voltage
12VDC
Mounting
Shaft Horizontal
Motor Type
Permanent Magnet DC

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 150 cfm, Airflow @ 0.400 in SP 131 cfm, Airflow @ 1.000 in SP 108 cfm, Airflow @ 2.000 in SP 44 cfm
